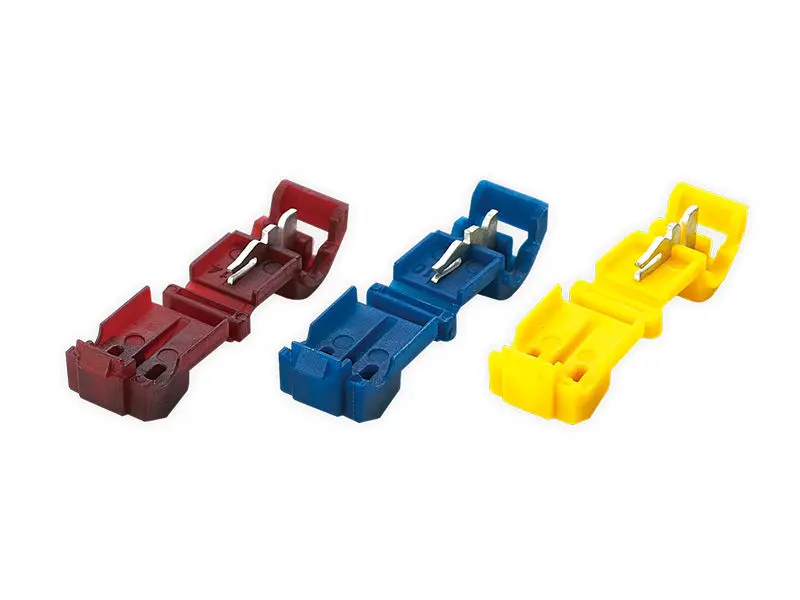

Quick Splice Connectors
Materials:
● Conductor: Brass strip H62/C28000
● Insulation: Nylon
Finished:
● Tin-Plated
Standard:
● ROHS3
Characteristics:
● Heat resistant: -40~105℃
● Easy-Entry insulation for easy cable insertion
● Use insulation displacement technology to make in-line splices
● Without previous stripping, pass through connections as well as pigtail and tap splices.
● The insulation with locking ensured the reliability of connection
● According to UL310, IEC60998-2 requirements

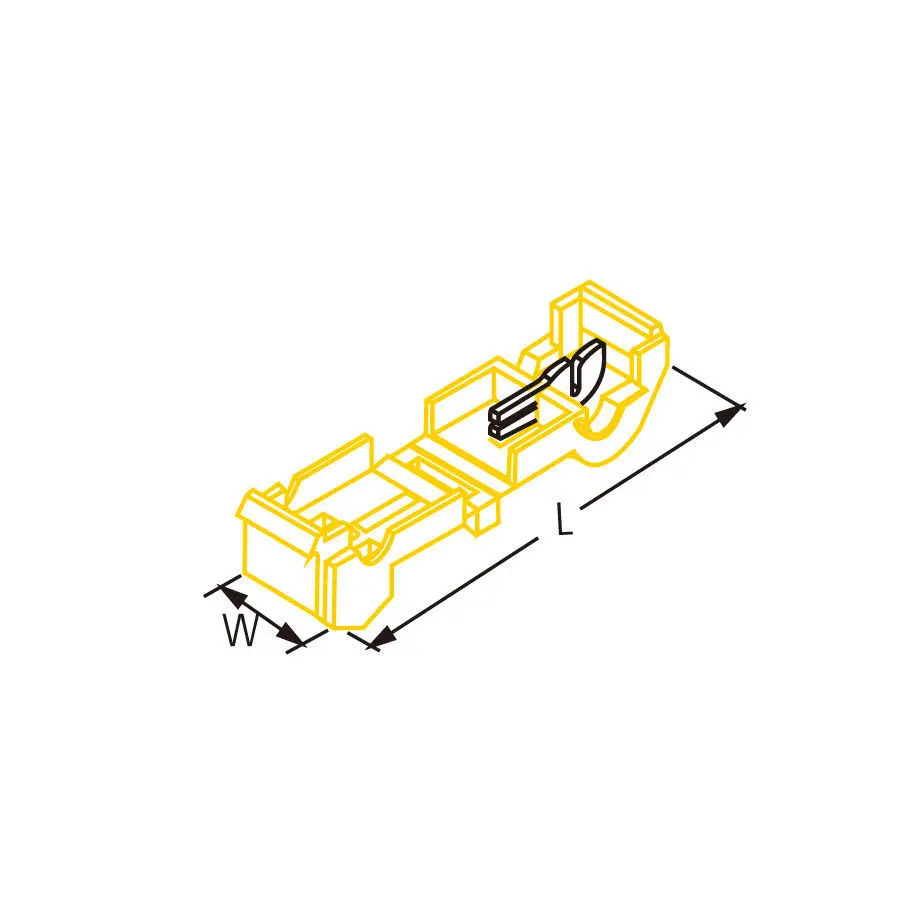

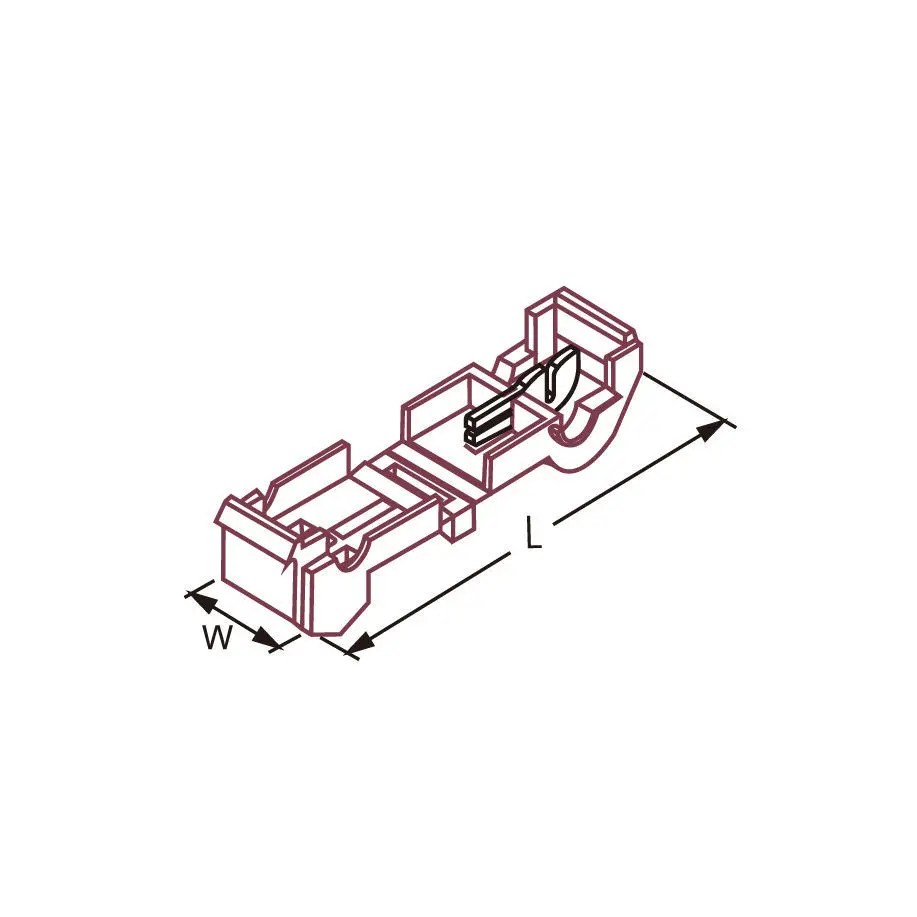

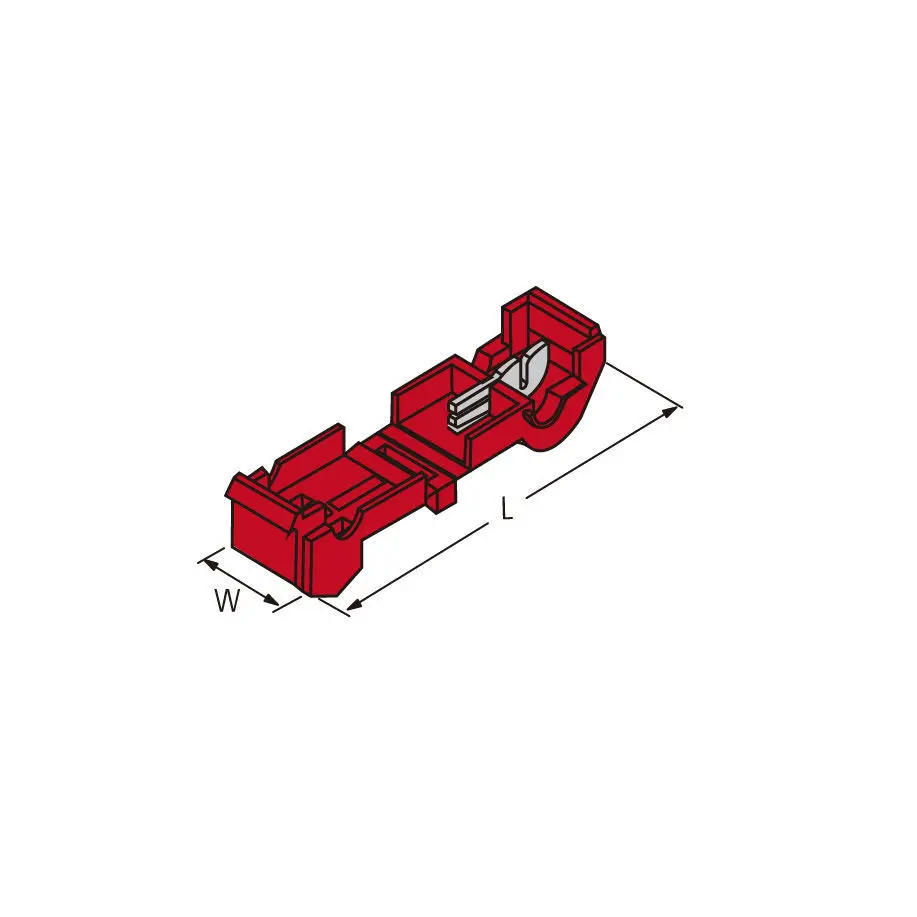

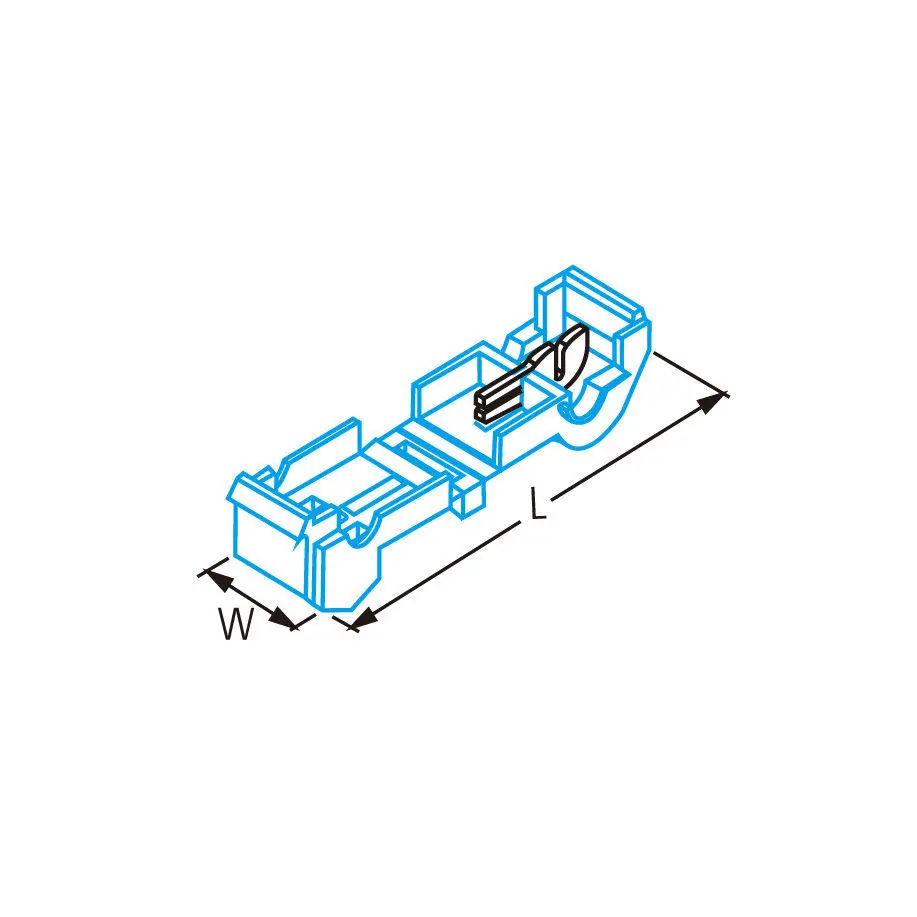

| Part No. | Type | Application for Cable Size | Dimension(mm) | ||
| mm² | A.W.G. | W | L | ||
| 10106202001 | ●QCS1 | 0.5-1.0 | 22-18 | 10 | 38 |
| 10106202002 | ●QCS2 | 1.0-2.5 | 18-14 | 10 | 38 |
| 10106202003 | ●QCS5 | 4-6 | 12-10 | 10 | 38 |
