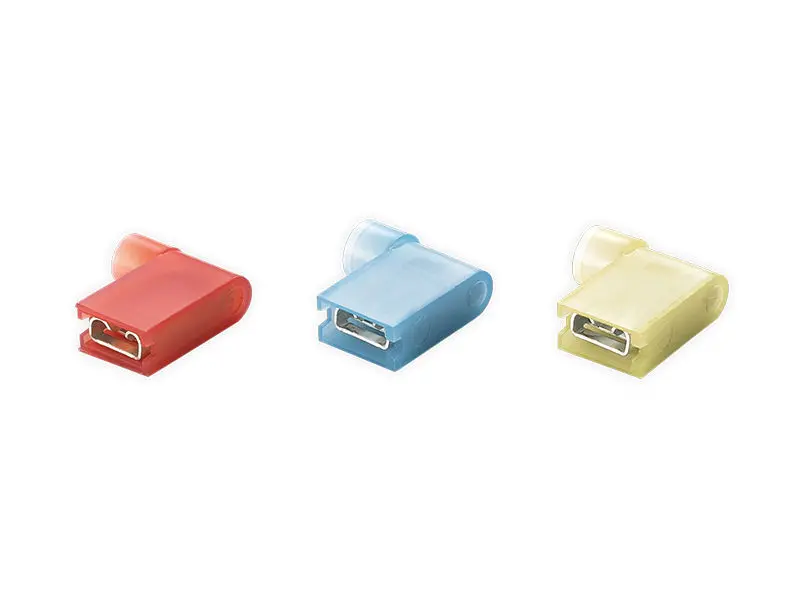

Nylon-Fully Insulated Flag-Female Disconnectors(Easy Entry)

Materials:
● Conductor: Brass strip H62/C28000
● Insulation: Nylon

Finished:
● Tin-Plated

Standard:
● ROHS3

Characteristics:
● Heat resistant: -40~105℃
● Flared insulation for easy cable insertion
● Low insertion force to mate easily with UL-compliant male tabs while maintaining a high retention
● Flared-barrel entry for easy wire insertion
● Right-angle structure to be mated easily in small space of mating direction
● According to UL310 requirements

Immediate Consultation

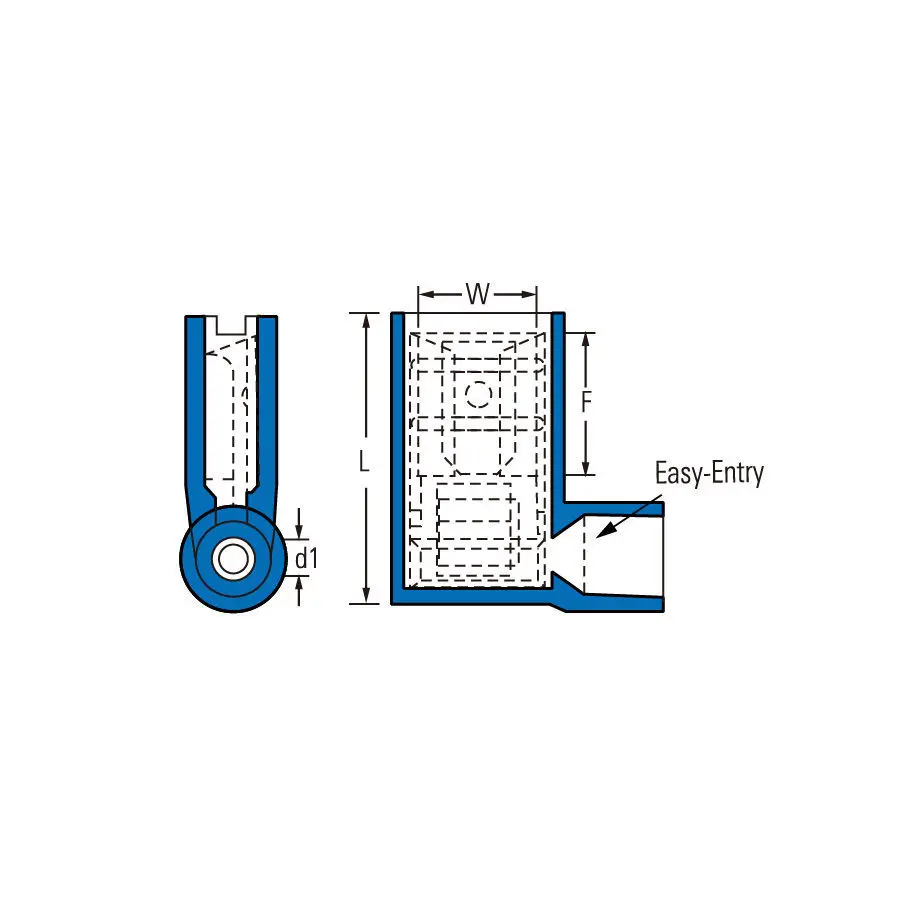

Part No.	Type	Mating Tab（mm）	Application for Cable Size		Stripped Length（mm)	Dimension(mm)
Part No.	Type	Mating Tab（mm）	mm²	A.W.G.	Stripped Length（mm)	W	F	L	d1	T
10104222001	● FLDNY1-250	0.8×6.35	0.5-1.5	22-16	7.5-8.0	6.6	7.6	16	1.7	0.4
10104222002	●FLDNY2-250	0.8×6.35	1.5-2.5	16-14	7.5-8.0	6.6	7.6	16	2.3	0.4
10104222003	●FLDNY5-250	0.8×6.35	4-6	12-10	8.5-9.0	6.6	7.6	16.5	3.4	0.4
