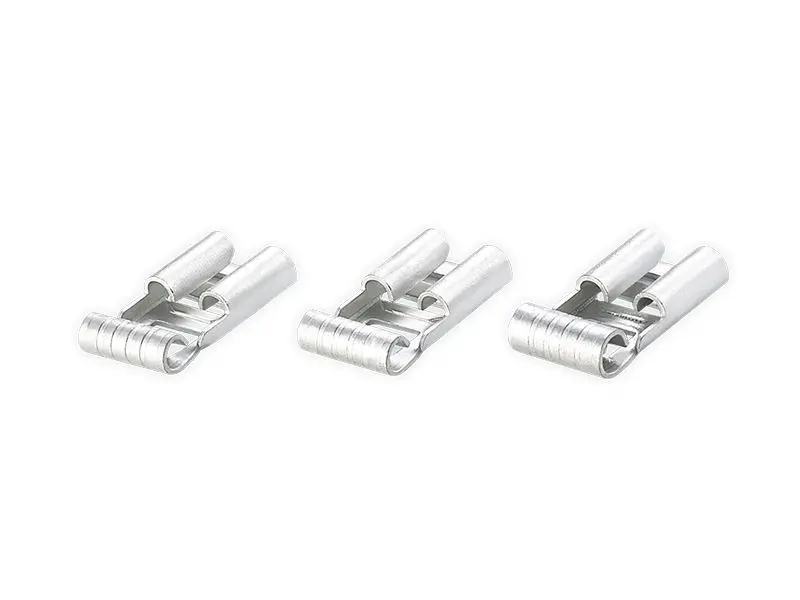

Non-Insulated Flag-Female Disconnectors
Materials:
● Conductor: Brass strip H62/C28000
Finished:
● Tin-Plated
Standard:
● ROHS3
Characteristics:
● Low insertion force to mate easily with UL-compliant male tabs while maintaining a high retention
● Right-angle structure to be mated easily in small space of mating direction
● According to UL310 requirements

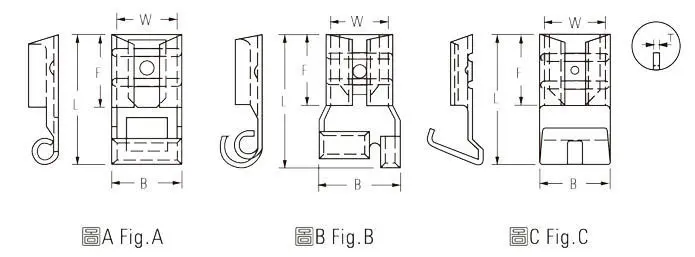

| Part No. | Type | Mating Tab（mm） | Dimension(mm) | ||||
| W | F | L | B | T | |||
| 10104F10001 | FLDNB1-187(5) | 0.5×4.75 | 5 | 6.2 | 11.3 | 5.5 | 0.4 |
| 10104F10002 | FLDNB1-187(8) | 0.8×4.75 | 5 | 6.2 | 11.3 | 5.5 | 0.4 |
| 10104F10003 | FLDNB1-250 | 0.8×6.35 | 6.6 | 7.6 | 14 | 7.4 | 0.4 |
| 10104F10004 | FLDNB2-187(5) | 0.5×4.75 | 5 | 6.2 | 11.6 | 5.5 | 0.4 |
| 10104F10005 | FLDNB2-187(8) | 0.8×4.75 | 5 | 6.2 | 11.6 | 5.5 | 0.4 |
| 10104F10006 | FLDNB2-250 | 0.8×6.35 | 6.6 | 7.6 | 14 | 7.4 | 0.4 |
| 10104F10007 | FLDNB5-250 | 0.8×6.35 | 6.6 | 7.6 | 14.5 | 7.5 | 0.4 |
| 10104F20001 | FLDNG1-250 | 0.8×6.35 | 6.6 | 7.8 | 15 | 9.3 | 0.4 |
| 10104F20002 | FLDNG2-250 | 0.8×6.35 | 6.6 | 7.8 | 15 | 9.3 | 0.4 |
