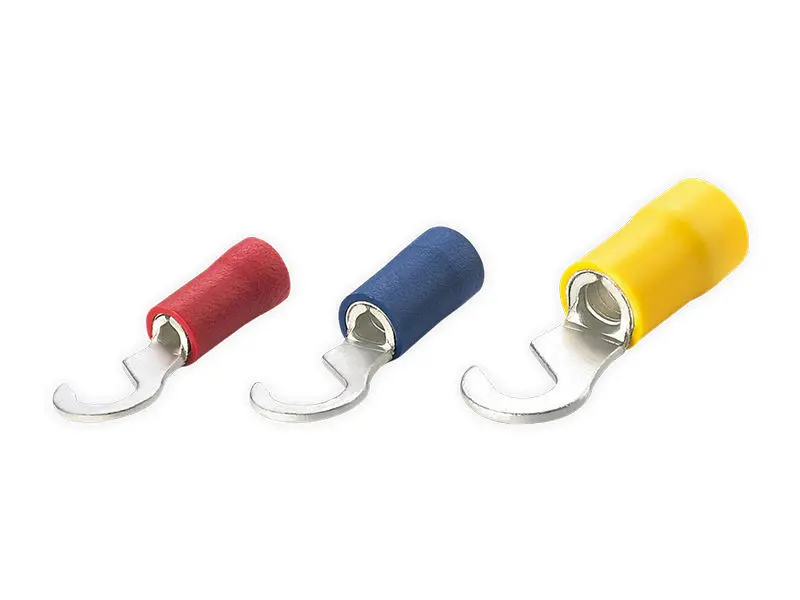

Vinyl-Insulated (Easy Entry) Double Crimp Hook Terminals
Materials:
● Conductor: Copper strip T2/C11000
● Copper sleeve: Copper tubular T2/C11000
● Insulation: PVC
Finished:
● Tin-Plated
Standard:
● ROHS3
Characteristics:
● Heat resistant: -10~75℃
● Flared copper sleeve for easy cable insertion
● The Copper sleeve protection terminal and the cable are fully connected and reliable
● Enable universal used with studs/screws to fix on equipments
● Fixing structure with of a side open-ended can be installed and removed without complete removal of the mounting screw
● According to UL486 requirements

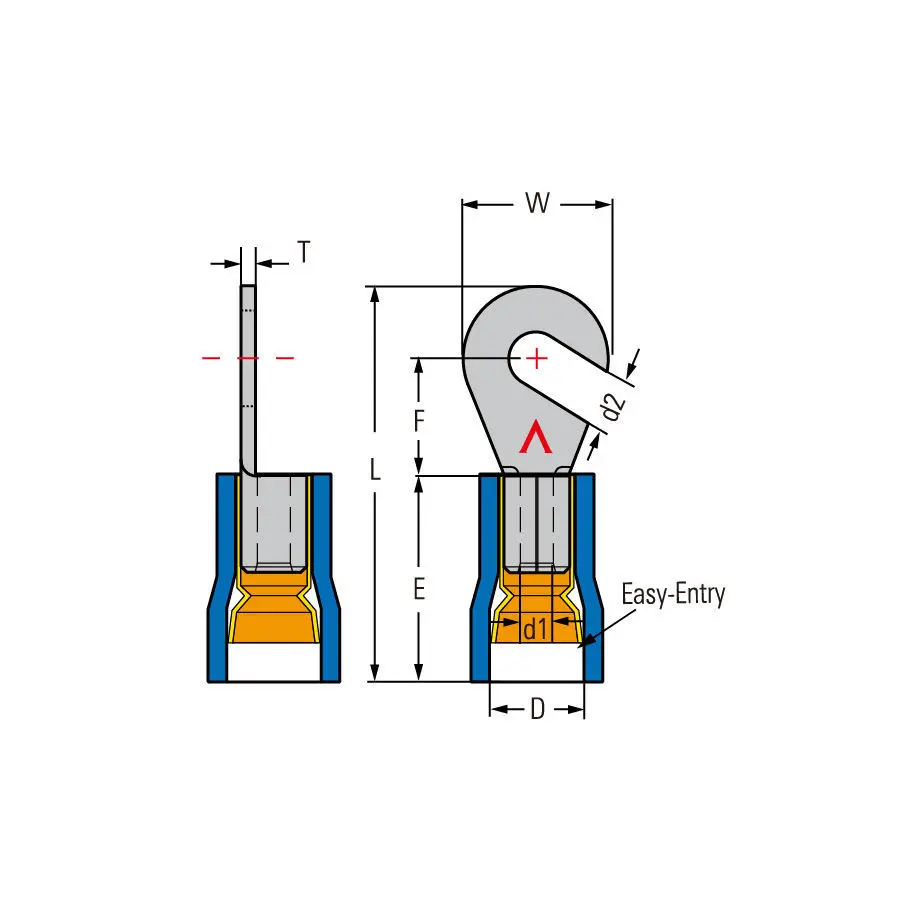

| Part No. | Type | Stud (Metric) | Application for Cable Size | Stripped Length（mm) | Dimension(mm) | ||||||||
| mm² | A.W.G. | d2 | W | F | L | E | D | d1 | T | ||||
| 10120302001 | ●HD1-3.7 | 3.5 | 0.5-1.5 | 22-16 | 7.5-8.0 | 3.8 | 8 | 7 | 21 | 10.5 | 4.3 | 1.7 | 0.75 |
| 10120302002 | ●HD1-4 | 4 | 0.5-1.5 | 22-16 | 7.5-8.0 | 4.4 | 8 | 7 | 21 | 10.5 | 4.3 | 1.7 | 0.75 |
| 10120302003 | ●HD1-5 | 5 | 0.5-1.5 | 22-16 | 7.5-8.0 | 5.4 | 8 | 7 | 21 | 10.5 | 4.3 | 1.7 | 0.75 |
| 10120302004 | ●HD1-6 | 6 | 0.5-1.5 | 22-16 | 7.5-8.0 | 6.6 | 11.6 | 11 | 26.9 | 10.5 | 4.3 | 1.7 | 0.75 |
| 10120302005 | ●HD2-3.7 | 3.5 | 1.5-2.5 | 16-14 | 7.5-8.0 | 3.8 | 8.5 | 7.8 | 22 | 10.5 | 4.8 | 2.3 | 0.8 |
| 10120302006 | ●HD2-4 | 4 | 1.5-2.5 | 16-14 | 7.5-8.0 | 4.4 | 8.5 | 7.8 | 22 | 10.5 | 4.8 | 2.3 | 0.8 |
| 10120302007 | ●HD2-5 | 5 | 1.5-2.5 | 16-14 | 7.5-8.0 | 5.4 | 9.5 | 7.3 | 22 | 10.5 | 4.8 | 2.3 | 0.8 |
| 10120302008 | ●HD2-6 | 6 | 1.5-2.5 | 16-14 | 7.5-8.0 | 6.6 | 12 | 11 | 26.9 | 10.5 | 4.8 | 2.3 | 0.8 |
| 10120302009 | ●HD5-3.7 | 3.5 | 4-6 | 12-10 | 8.5-9.0 | 3.8 | 7.2 | 6.1 | 22.7 | 13 | 6.7 | 3.4 | 1 |
| 10120302010 | ●HD5-4 | 4 | 4-6 | 12-10 | 8.5-9.0 | 4.4 | 9.5 | 8.9 | 26.6 | 13 | 6.7 | 3.4 | 1 |
| 10120302011 | ●HD5-5 | 5 | 4-6 | 12-10 | 8.5-9.0 | 5.4 | 9.5 | 8.9 | 26.6 | 13 | 6.7 | 3.4 | 1 |
| 10120302012 | ●HD5-6 | 6 | 4-6 | 12-10 | 8.5-9.0 | 6.6 | 12 | 10.5 | 29.5 | 13 | 6.7 | 3.4 | 1 |
| 10120302013 | ●HD5-8 | 8 | 4-6 | 12-10 | 8.5-9.0 | 8.5 | 15 | 13.5 | 34 | 13 | 6.7 | 3.4 | 1 |
