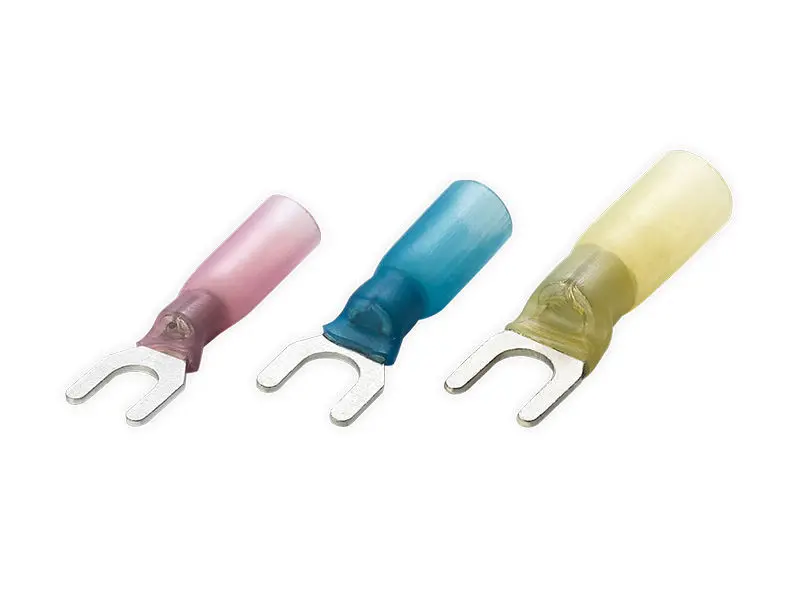

Heat Shrinkable-Insulated Spade Terminals

Materials:
● Conductor: Copper strip T2/C11000
● Insulation: Dual wall heat-shrinkable tube

Finished:
● Brazed seam
● Tin-Plated

Standard:
● ROHS3

Characteristics:
● Heat resistant: -45~125℃
● Excellent insulation clarity: Easy to see wire conductor is fully inserted into crimp barrel before crimping
● Lined with hot melt adhesive: Completely seals the termination area and heals any splits in insulation caused by crimping
● Shrinking temperature:125-200℃
● Abrasion resistant prevents wearing caused by excess vibration
● Brazed seam on the crimp barrel; Creates a seamless barrel that eliminates the need for proper orientation of the barrel during crimping; permits 360°of rotation in the crimp jaws for faster and more reliable crimping
● Enable universal used with studs/screws to fix on equipments
● Fixing structure with of an open-ended can be installed and removed without complete removal of the mounting screw
● According to UL486 requirements

Immediate Consultation

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length（mm)	Dimension(mm)

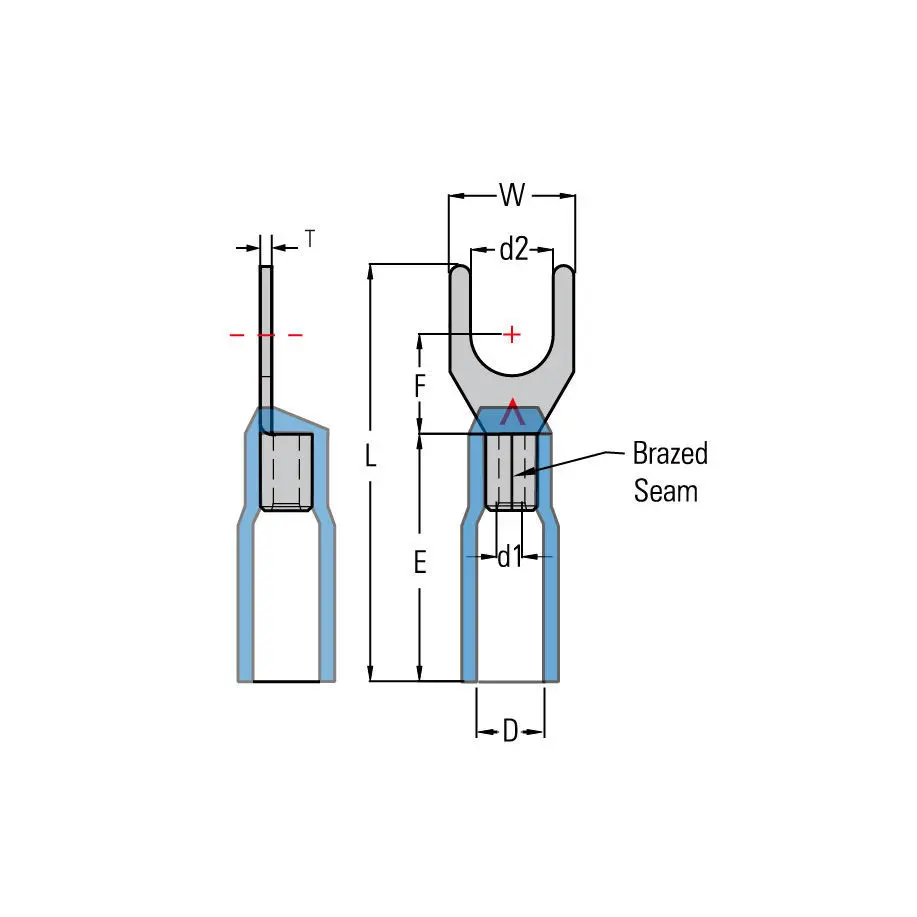

Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length（mm)	d2	W	F	L	E	D	d1	T
1011A204001	●SHT1-3.2(BS)	3	0.5-1.5	22-16	6	3.3	5.7	6.5	27	17	4.7	1.7	0.75
1011A204002	●SHT1-3.7S(BS)	3.5	0.5-1.5	22-16	6	3.8	5.7	6.5	27	17	4.7	1.7	0.75
1011A204003	●SHT1-3.7L(BS)	3.5	0.5-1.5	22-16	6	3.8	6.4	6.5	27	17	4.7	1.7	0.75
1011A204004	●SHT1-4S(BS)	4	0.5-1.5	22-16	6	4.4	6.4	6.5	27	17	4.7	1.7	0.75
1011A204005	●SHT1-4M(BS)	4	0.5-1.5	22-16	6	4.4	7.2	6.5	27	17	4.7	1.7	0.75
1011A204006	●SHT1-3.7LL(BS)	3.5	0.5-1.5	22-16	6	3.8	7.2	6.5	27	17	4.7	1.7	0.75
1011A204007	●SHT1-4L(BS)	4	0.5-1.5	22-16	6	4.4	8.1	6.5	27	17	4.7	1.7	0.75
1011A204008	●SHT1-5S(BS)	5	0.5-1.5	22-16	6	5.4	8.1	6.5	27	17	4.7	1.7	0.75
1011A204009	●SHT1-5L(BS)	5	0.5-1.5	22-16	6	5.4	9.5	6.5	27	17	4.7	1.7	0.75
1011A204010	●SHT1-6S(BS)	6	0.5-1.5	22-16	6	6.6	9.5	6.5	27	17	4.7	1.7	0.75
1011A204011	●SHT1-6L(BS)	6	0.5-1.5	22-16	6	6.6	12	11	33	17	4.7	1.7	0.75
1011A204012	●SHT2-3.2(BS)	3	1.5-2.5	16-14	6	3.3	5.7	6.5	27	17	5.7	2.3	0.8
1011A204013	●SHT2-3.7S(BS)	3.5	1.5-2.5	16-14	6	3.8	5.7	6.5	27	17	5.7	2.3	0.8
1011A204014	●SHT2-3.7L(BS)	3.5	1.5-2.5	16-14	6	3.8	6.4	6.5	27	17	5.7	2.3	0.8
1011A204015	●SHT2-4S(BS)	4	1.5-2.5	16-14	6	4.4	6.4	6.5	27	17	5.7	2.3	0.8
1011A204016	●SHT2-3.7LL(BS)	3.5	1.5-2.5	16-14	6	3.8	7.2	6.5	27	17	5.7	2.3	0.8
1011A204017	●SHT2-4M(BS)	4	1.5-2.5	16-14	6	4.4	7.2	6.5	27	17	5.7	2.3	0.8
1011A204018	●SHT2-4L(BS)	4	1.5-2.5	16-14	6	4.4	8.1	6.5	27	17	5.7	2.3	0.8
1011A204019	●SHT2-5S(BS)	5	1.5-2.5	16-14	6	5.4	8.1	6.5	27	17	5.7	2.3	0.8
1011A204020	●SHT2-5L(BS)	5	1.5-2.5	16-14	6	5.4	9.3	6.5	27	17	5.7	2.3	0.8
1011A204021	●SHT2-6S(BS)	6	1.5-2.5	16-14	6	6.6	9.3	6.5	27	17	5.7	2.3	0.8
1011A204022	●SHT2-6L(BS)	6	1.5-2.5	16-14	6	6.6	12	11	33	17	5.7	2.3	0.8
1011A204023	●SHT5-3.7(BS)	3.5	4-6	12-10	7	3.8	8.3	7	29.5	20	6.7	3.4	1
1011A204024	●SHT5-4S(BS)	4	4-6	12-10	7	4.4	8.3	7	29.5	20	6.7	3.4	1
1011A204025	●SHT5-4L(BS)	4	4-6	12-10	7	5.4	9	7	29.5	20	6.7	3.4	1
1011A204026	●SHT5-5(BS)	5	4-6	12-10	7	5.5	12	12.1	29.5	20	6.7	3.4	1
1011A204027	●SHT5-6S(BS)	6	4-6	12-10	7	6.6	9	7	29.5	20	6.7	3.4	1
1011A204028	●SHT5-6L(BS)	6	4-6	12-10	7	6.6	12	7	35.5	20	6.7	3.4	1
1011A204029	●SHT5-8(BS)	8	4-6	12-10	7	8.5	14	7	24.5	20	6.7	3.4	1
1011A204030	●SHT5-3.7S(BS)	3.5	4-6	12-10	7	3.8	7.2	7	28.5	20	6.7	3.4	1
1011A204031	●SHT5-4SS(BS)	4	4-6	12-10	7	4.4	7.2	7	28.5	20	6.7	3.4	1
