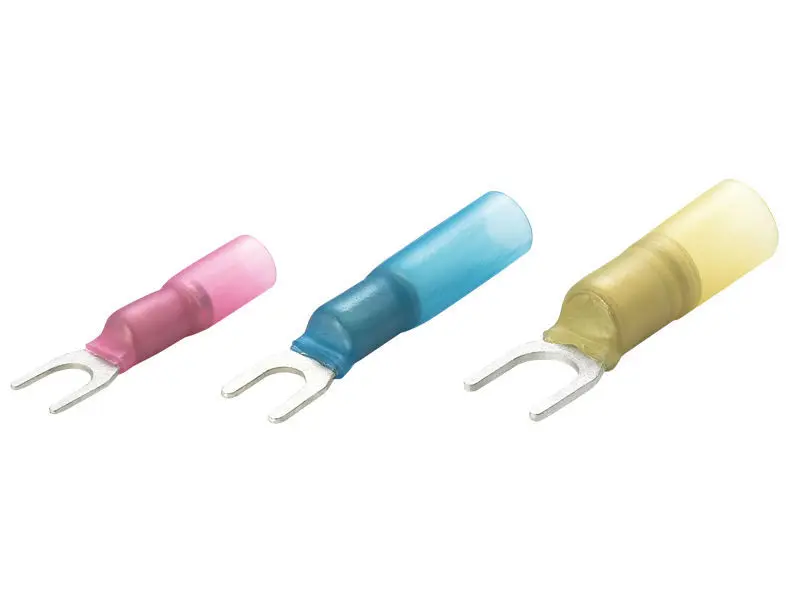

Heat Shrinkable-Insulated (Easy Entry) Double Crimp Spade Terminals

Materials:
● Conductor: Copper strip T2/C11000
● Copper sleeve: Copper tubular T2/C11000
● Insulation: Dual wall heat-shrinkable tube

Finished:
● Tin-Plated

Standard:
● ROHS3

Characteristics:
● Heat resistant: -45~125℃
● Flared copper sleeve for easy cable insertion
● The copper sleeve protection terminal and the cable are fully connected and reliable
● Excellent insulation clarity: Easy to see wire conductor is fully inserted into crimp barrel before crimping
● Lined with hot melt adhesive: Completely seals the termination area and heals any splits in insulation caused by crimping
● Shrinking temperature:125-200℃
● Abrasion resistant prevents wearing caused by excess vibration
● Enable universal used with studs/screws to fix on equipments
● Fixing structure with of an open-ended can be installed and removed without complete removal of the mounting screw
● According to UL486 requirements

Immediate Consultation

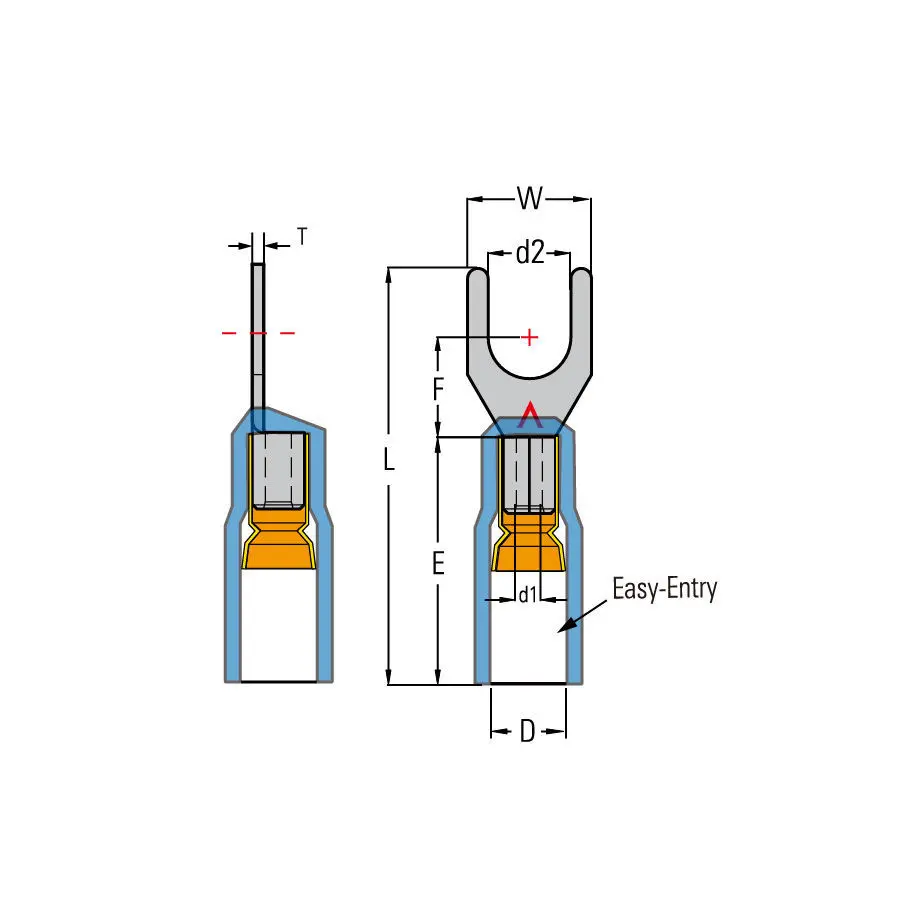

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length（mm)	Dimension(mm)
Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length（mm)	d2	W	F	L	E	D	d1	T
1011A361001	●SHTD1-3.2	3	0.5-1.5	22-16	6.5-7.0	3.3	5.7	6.5	27	17	4.7	1.7	0.75
1011A361002	●SHTD1-3.7S	3.5	0.5-1.5	22-16	6.5-7.0	3.8	5.7	6.5	27	17	4.7	1.7	0.75
1011A361003	●SHTD1-3.7L	3.5	0.5-1.5	22-16	6.5-7.0	3.8	6.4	6.5	27	17	4.7	1.7	0.75
1011A361004	●SHTD1-4S	4	0.5-1.5	22-16	6.5-7.0	4.4	6.4	6.5	27	17	4.7	1.7	0.75
1011A361005	●SHTD1-4M	4	0.5-1.5	22-16	6.5-7.0	4.4	7.2	6.5	27	17	4.7	1.7	0.75
1011A361006	●SHTD1-3.7LL	3.5	0.5-1.5	22-16	6.5-7.0	3.8	7.2	6.5	27	17	4.7	1.7	0.75
1011A361007	●SHTD1-4L	4	0.5-1.5	22-16	6.5-7.0	4.4	8.1	6.5	27	17	4.7	1.7	0.75
1011A361008	●SHTD1-5S	5	0.5-1.5	22-16	6.5-7.0	5.4	8.1	6.5	27	17	4.7	1.7	0.75
1011A361009	●SHTD1-5L	5	0.5-1.5	22-16	6.5-7.0	5.4	9.5	6.5	27	17	4.7	1.7	0.75
1011A361010	●SHTD1-6S	6	0.5-1.5	22-16	6.5-7.0	6.6	9.5	6.5	27	17	4.7	1.7	0.75
1011A361011	●SHTD1-6L	6	0.5-1.5	22-16	6.5-7.0	6.6	12	11	33	17	4.7	1.7	0.75
1011A361012	●SHTD2-3.2	3	1.5-2.5	16-14	6.5-7.0	3.3	5.7	6.5	27	17	5.7	2.3	0.8
1011A361013	●SHTD2-3.7S	3.5	1.5-2.5	16-14	6.5-7.0	3.8	5.7	6.5	27	17	5.7	2.3	0.8
1011A361014	●SHTD2-3.7L	3.5	1.5-2.5	16-14	6.5-7.0	3.8	6.4	6.5	27	17	5.7	2.3	0.8
1011A361015	●SHTD2-4S	4	1.5-2.5	16-14	6.5-7.0	4.4	6.4	6.5	27	17	5.7	2.3	0.8
1011A361016	●SHTD2-3.7LL	3.5	1.5-2.5	16-14	6.5-7.0	3.8	7.2	6.5	27	17	5.7	2.3	0.8
1011A361017	●SHTD2-4M	4	1.5-2.5	16-14	6.5-7.0	4.4	7.2	6.5	27	17	5.7	2.3	0.8
1011A361018	●SHTD2-4L	4	1.5-2.5	16-14	6.5-7.0	4.4	8.1	6.5	27	17	5.7	2.3	0.8
1011A361019	●SHTD2-5S	5	1.5-2.5	16-14	6.5-7.0	5.4	8.1	6.5	27	17	5.7	2.3	0.8
1011A361020	●SHTD2-5L	5	1.5-2.5	16-14	6.5-7.0	5.4	9.3	6.5	27	17	5.7	2.3	0.8
1011A361021	●SHTD2-6S	6	1.5-2.5	16-14	6.5-7.0	6.6	9.3	6.5	27	17	5.7	2.3	0.8
1011A361022	●SHTD2-6L	6	1.5-2.5	16-14	6.5-7.0	6.6	12	11	33	17	5.7	2.3	0.8
1011A361023	●SHTD5-3.7	3.5	4-6	12-10	7.0-8.0	3.8	8.3	7	29.5	20	8.3	3.5	1
1011A361024	●SHTD5-4S	4	4-6	12-10	7.0-8.0	4.4	8.3	7	29.5	20	8.3	3.5	1
1011A361025	●SHTD5-4L	4	4-6	12-10	7.0-8.0	5.4	9	7	29.5	20	8.3	3.5	1
1011A361026	●SHTD5-5	5	4-6	12-10	7.0-8.0	5.5	12	12.1	29.5	20	8.3	3.5	1
1011A361027	●SHTD5-6S	6	4-6	12-10	7.0-8.0	6.6	9	7	29.5	20	8.3	3.5	1
1011A361028	●SHTD5-6L	6	4-6	12-10	7.0-8.0	6.6	12	7	35.5	20	8.3	3.5	1
1011A361029	●SHTD5-8	8	4-6	12-10	7.0-8.0	8.5	14	7	24.5	20	8.3	3.5	1
1011A361030	●SHTD5-3.7S	3.5	4-6	12-10	7.0-8.0	3.8	7.2	7	28.5	20	8.3	3.5	1
1011A361031	●SHTD5-4SS	4	4-6	12-10	7.0-8.0	4.4	7.2	7	28.5	20	8.3	3.5	1
