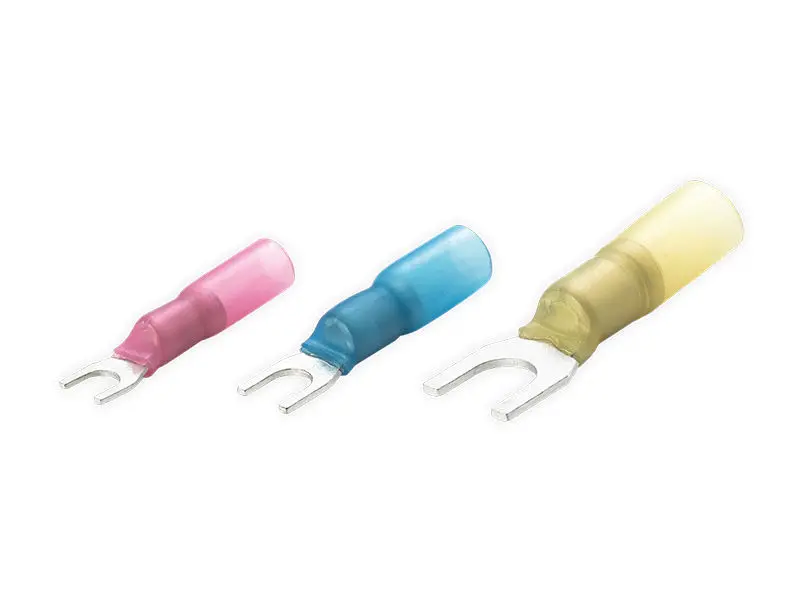

Heat Shrinkable-Insulated (Easy Entry) Double Crimp Spade Terminals(Din46237)

Materials:
● Conductor: Copper strip T2/C11000
● Copper sleeve: Copper tubular T2/C11000
● Insulation: Dual wall heat-shrinkable tube

Finished:
● Tin-Plated

Standard:
● ROHS3
● Conductor size accords with DIN46234

Characteristics:
● Heat resistant: -45~125℃
● Flared copper sleeve for easy cable insertion
● The copper sleeve protection terminal and the cable are fully connected and reliable
● Excellent insulation clarity: Easy to see wire conductor is fully inserted into crimp barrel before crimping
● Lined with hot melt adhesive: Completely seals the termination area and heals any splits in insulation caused by crimping
● Shrinking temperature:125-200℃
● Abrasion resistant prevents wearing caused by excess vibration
● Enable universal used with studs/screws to fix on equipments
● According to UL486 requirements

Immediate Consultation

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length（mm)	Dimension(mm)

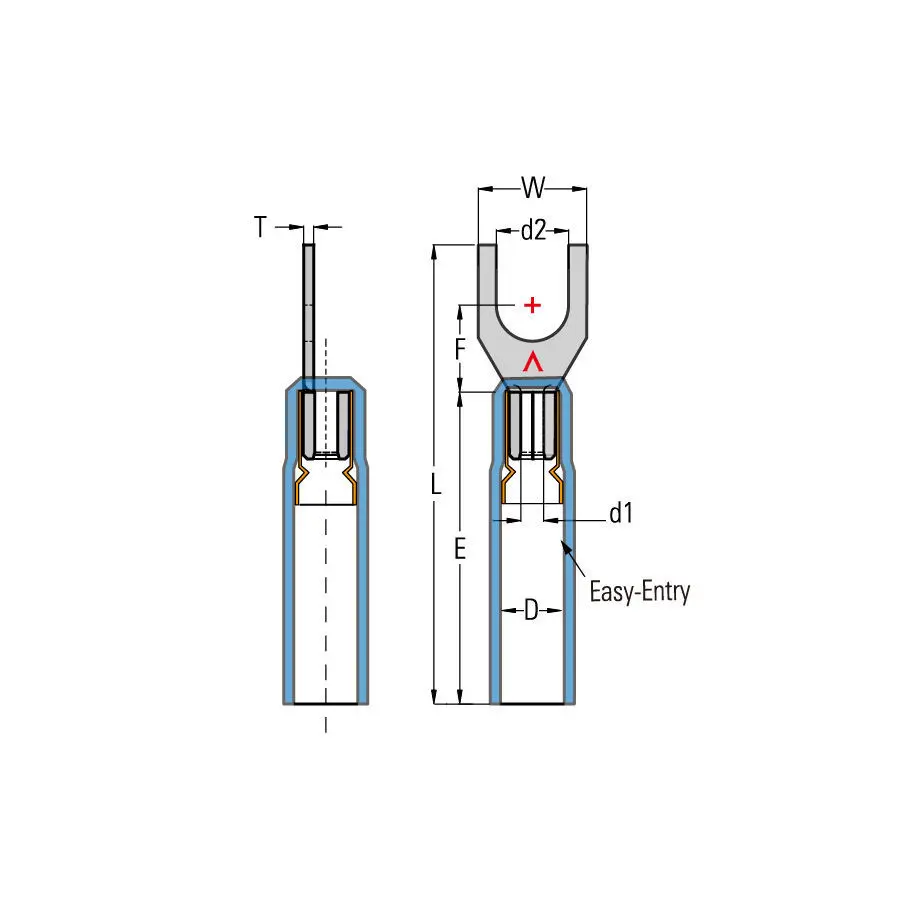

Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length（mm)	d2	W	F	L	E	D	d1	T
1011D215000	●DSHTD1-3	3	0.5-1.5	22-16	6.5-7.0	3.2	6	16	25.6	17	4.7	1.7	0.75
1011D215001	●DSHTD1-3.5	3.5	0.5-1.5	22-16	6.5-7.0	3.7	6	16	25.6	17	4.7	1.7	0.75
1011D215002	●DSHTD1-4	4	0.5-1.5	22-16	6.5-7.0	4.3	6.8	17	27.6	17	4.7	1.7	0.75
1011D215003	●DSHTD1-4L	4	0.5-1.5	22-16	6.5-7.0	4.3	8	17	27.6	17	4.7	1.7	0.75
1011D215004	●DSHTD1-5	5	0.5-1.5	22-16	6.5-7.0	5.3	10	18	29.6	17	4.7	1.7	0.75
1011D215005	●DSHTD1-6	6	0.5-1.5	22-16	6.5-7.0	6.4	11	20	32.2	17	4.7	1.7	0.75
1011D215006	●DSHTD2.5-3	3	1.5-2.5	16-14	6.5-7.0	3.2	5.5	18	25.9	17	5.7	2.3	0.8
1011D215007	●DSHTD2.5-3.5	3.5	1.5-2.5	16-14	6.5-7.0	3.7	6	16	25.9	17	5.7	2.3	0.8
1011D215008	●DSHTD2.5-4	4	1.5-2.5	16-14	6.5-7.0	4.3	6.8	17	27.9	17	5.7	2.3	0.8
1011D215009	●DSHTD2.5-4L	4	1.5-2.5	16-14	6.5-7.0	4.3	8	17	27.9	17	5.7	2.3	0.8
1011D215010	●DSHTD2.5-5	5	1.5-2.5	16-14	6.5-7.0	5.3	10	19	30.9	17	5.7	2.3	0.8
1011D215011	●DSHTD2.5-6	6	1.5-2.5	16-14	6.5-7.0	6.4	11	21	33.4	17	5.7	2.3	0.8
1011D215012	●DSHTD6-4	4	4-6	12-10	7.0-8.0	4.3	8	21	31.2	20	8.3	3.4	1
1011D215013	●DSHTD6-5	5	4-6	12-10	7.0-8.0	5.3	10	22	33.4	20	8.3	3.4	1
1011D215014	●DSHTD6-6	6	4-6	12-10	7.0-8.0	6.4	11	23	35.2	20	8.3	3.4	1
1011D215015	●DSHTD6-8	8	4-6	12-10	7.0-8.0	8.4	14	26	39.6	20	8.3	3.4	1
1011D215016	●DSHTD6-10	10	4-6	12-10	7.0-8.0	10.5	18	28	42.6	20	8.3	3.4	1
