Heat Shrinkable-Insulated (Easy Entry) Double Crimp Ring Terminals

Materials:
● Conductor: Copper strip T2/C11000
● Copper sleeve: Copper tubular T2/C11000
● Insulation: Dual wall heat-shrinkable tube

Finished:
● Tin-Plated

Standard:
● ROHS3

Characteristics:
● Heat resistant: -45~125℃
● Flared copper sleeve for easy cable insertion
● The copper sleeve protection terminal and the cable are fully connected and reliable
● Excellent insulation clarity: Easy to see wire conductor is fully inserted into crimp barrel before crimping
● Lined with hot melt adhesive: Completely seals the termination area and heals any splits in insulation caused by crimping
● Shrinking temperature:125-200℃
● Abrasion resistant prevents wearing caused by excess vibration
● Enable universal used with studs/screws to fix on equipments
● According to UL486 requirements

Immediate Consultation

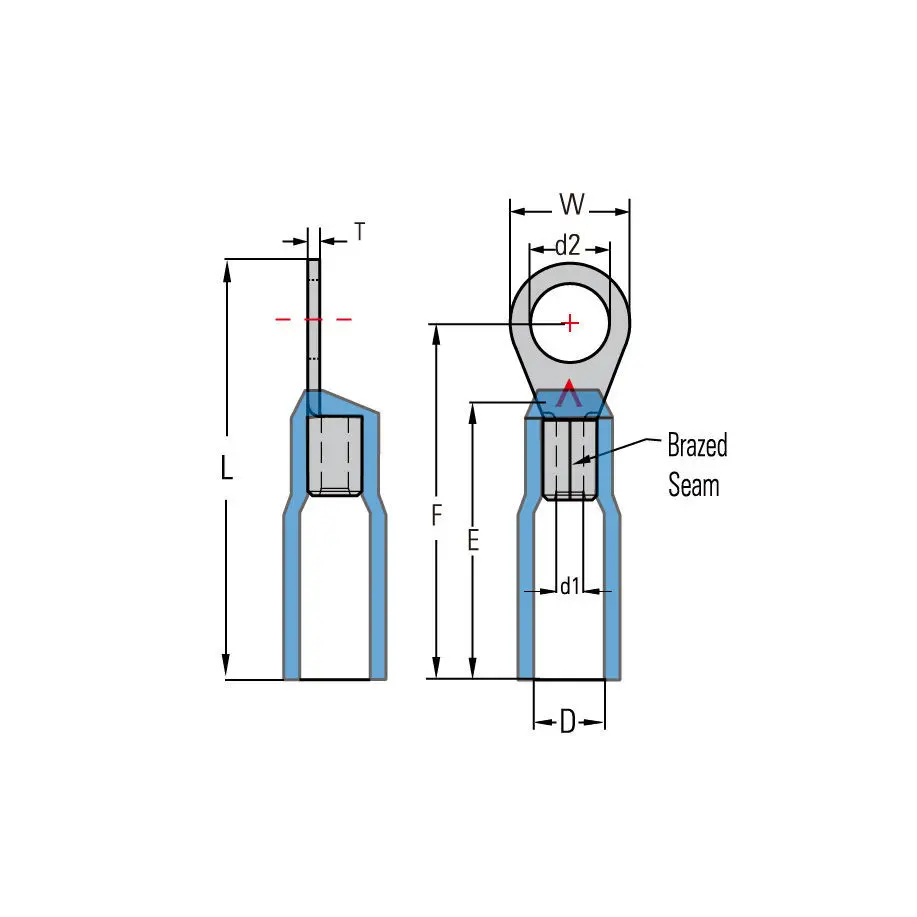

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length（mm)	Dimension(mm)
Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length（mm)	d2	W	F	L	E	D	d1	T
1010A361001	●RHTD1-3.2	3	0.5-1.5	22-16	6.5-7.0	3.2	5.5	4.8	24.5	17	4.7	1.7	0.75
1010A361002	●RHTD1-3.7S	3.5	0.5-1.5	22-16	6.5-7.0	3.7	5.5	4.8	24.5	17	4.7	1.7	0.75
1010A361003	●RHTD1-3.7M	3.5	0.5-1.5	22-16	6.5-7.0	3.7	6.6	6.3	26.4	17	4.7	1.7	0.75
1010A361004	●RHTD1-3.7L	3.5	0.5-1.5	22-16	6.5-7.0	3.7	8	7	27.8	17	4.7	1.7	0.75
1010A361005	●RHTD1-4S	4	0.5-1.5	22-16	6.5-7.0	4.3	6.6	6.3	26.4	17	4.7	1.7	0.75
1010A361006	●RHTD1-4L	4	0.5-1.5	22-16	6.5-7.0	4.3	8	7	27.8	17	4.7	1.7	0.75
1010A361007	●RHTD1-5	5	0.5-1.5	22-16	6.5-7.0	5.3	8	7	27.8	17	4.7	1.7	0.75
1010A361008	●RHTD1-5L	5	0.5-1.5	22-16	6.5-7.0	5.3	11.8	11	33.7	17	4.7	1.7	0.75
1010A361009	●RHTD1-6	6	0.5-1.5	22-16	6.5-7.0	6.4	11.8	11	33.7	17	4.7	1.7	0.75
1010A361010	●RHTD1-8	8	0.5-1.5	22-16	6.5-7.0	8.4	11.8	11	33.7	17	4.7	1.7	0.75
1010A361011	●RHTD1-10	10	0.5-1.5	22-16	6.5-7.0	10.5	13.6	13.9	37.5	17	4.7	1.7	0.75
1010A361012	●RHTD2-3.2	3	1.5-2.5	16-14	6.5-7.0	3.2	6.6	4.7	24.8	17	5.7	2.3	0.8
1010A361013	●RHTD2-3.7S	3.5	1.5-2.5	16-14	6.5-7.0	3.7	6.6	4.7	24.8	17	5.7	2.3	0.8
1010A361014	●RHTD2-3.7M	3.5	1.5-2.5	16-14	6.5-7.0	3.7	6.6	6.3	26.5	17	5.7	2.3	0.8
1010A361015	●RHTD2-3.7L	3.5	1.5-2.5	16-14	6.5-7.0	3.7	8.5	7.4	28.8	17	5.7	2.3	0.8
1010A361016	●RHTD2-4S	4	1.5-2.5	16-14	6.5-7.0	4.3	6.6	6.3	26.5	17	5.7	2.3	0.8
1010A361017	●RHTD2-4L	4	1.5-2.5	16-14	6.5-7.0	4.3	8.5	7.8	28.8	17	5.7	2.3	0.8
1010A361018	●RHTD2-5S	5	1.5-2.5	16-14	6.5-7.0	5.3	8.5	7.8	28.8	17	5.7	2.3	0.8
1010A361019	●RHTD2-5L	5	1.5-2.5	16-14	6.5-7.0	5.3	9.6	7.3	29	17	5.7	2.3	0.8
1010A361020	●RHTD2-6	6	1.5-2.5	16-14	6.5-7.0	6.4	12	11	33.9	17	5.7	2.3	0.8
1010A361021	●RHTD2-8	8	1.5-2.5	16-14	6.5-7.0	8.4	12	11	33.9	17	5.7	2.3	0.8
1010A361022	●RHTD2-10	10	1.5-2.5	16-14	6.5-7.0	10.5	13.6	13.6	37.5	17	5.7	2.3	0.8
1010A361023	●RHTD5-3.7	3.5	4-6	12-10	7.0-8.0	3.7	7.2	6.1	29.7	20	8.3	3.4	1
1010A361024	●RHTD5-4S	4	4-6	12-10	7.0-8.0	4.3	7.2	6.1	29.7	20	8.3	3.4	1
1010A361025	●RHTD5-4L	4	4-6	12-10	7.0-8.0	4.3	9.5	8.3	33	20	8.3	3.4	1
1010A361026	●RHTD5-5	5	4-6	12-10	7.0-8.0	5.3	9.5	8.3	33	20	8.3	3.4	1
1010A361027	●RHTD5-6	6	4-6	12-10	7.0-8.0	6.4	12	10.5	36.5	20	8.3	3.4	1
1010A361028	●RHTD5-8	8	4-6	12-10	7.0-8.0	8.4	15	13.5	41	20	8.3	3.4	1
1010A361029	●RHTD5-10	10	4-6	12-10	7.0-8.0	10.5	15	13.5	41	20	8.3	3.4	1
1010A361030	●RHTD5-12	12	4-6	12-10	7.0-8.0	13	19.2	16	45.6	20	8.3	3.4	1
