Heat Shrinkable-Insulated Ring Terminals

Materials:
● Conductor: Copper strip T2/C11000
● Insulation: Dual wall heat-shrinkable tube

Finished:
● Brazed seam
● Tin-Plated

Standard:
● ROHS3

Characteristics:
● Heat resistant: -45~125℃
● Excellent insulation clarity: Easy to see wire conductor is fully inserted into crimp barrel before crimping
● Lined with hot melt adhesive: Completely seals the termination area and heals any splits in insulation caused by crimping
● Shrinking temperature:125-200℃
● Abrasion resistant prevents wearing caused by excess vibration
● Brazed seam on the crimp barrel; Creates a seamless barrel that eliminates the need for proper orientation of the barrel during crimping; permits 360°of rotation in the crimp jaws for faster and more reliable crimping
● Enable universal used with studs/screws to fix on equipments
● According to UL486 requirements

Immediate Consultation

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length（mm)	Dimension(mm)

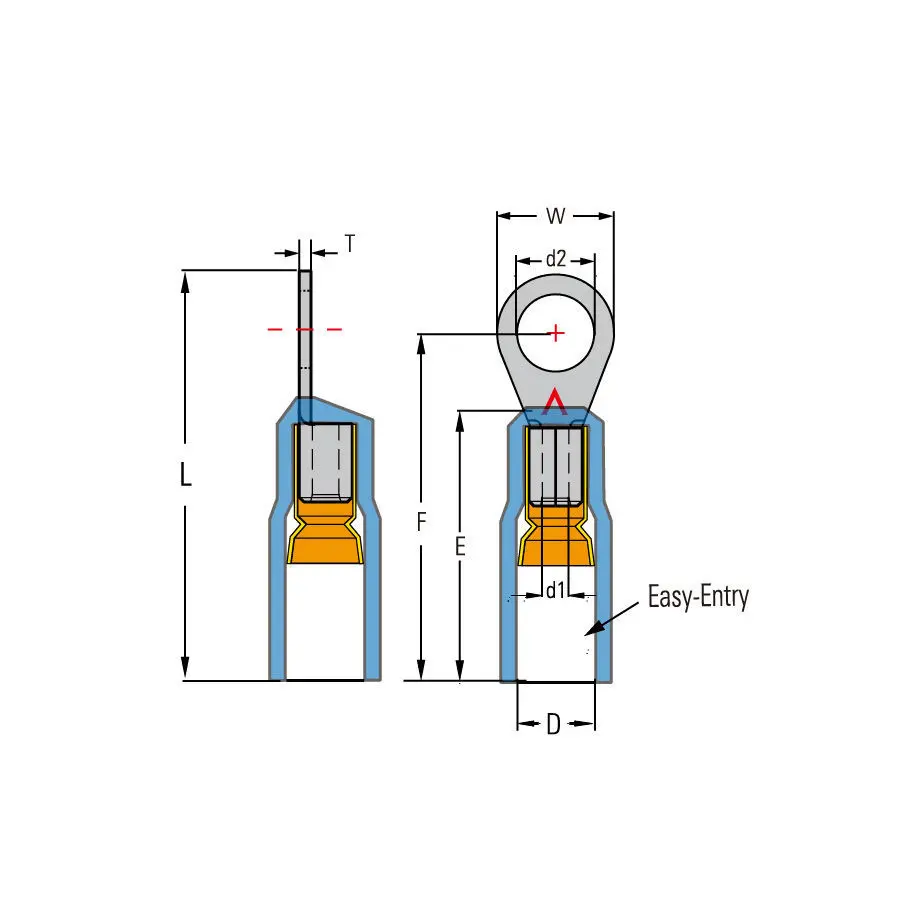

Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length（mm)	d2	W	F	L	E	D	d1	T
1010A204001	●RHT1-3.2(BS)	3	0.5-1.5	22-16	6	3.2	5.5	4.8	24.5	17	4.7	1.7	0.75
1010A204002	●RHT1-3.7S(BS)	3.5	0.5-1.5	22-16	6	3.7	5.5	4.8	24.5	17	4.7	1.7	0.75
1010A204003	●RHT1-3.7M(BS)	3.5	0.5-1.5	22-16	6	3.7	6.6	6.3	26.4	17	4.7	1.7	0.75
1010A204004	●RHT1-3.7L(BS)	3.5	0.5-1.5	22-16	6	3.7	8	7	27.8	17	4.7	1.7	0.75
1010A204005	●RHT1-4S(BS)	4	0.5-1.5	22-16	6	4.3	6.6	6.3	26.4	17	4.7	1.7	0.75
1010A204006	●RHT1-4L(BS)	4	0.5-1.5	22-16	6	4.3	8	7	27.8	17	4.7	1.7	0.75
1010A204007	●RHT1-5(BS)	5	0.5-1.5	22-16	6	5.3	8	7	27.8	17	4.7	1.7	0.75
1010A204008	●RHT1-5L(BS)	5	0.5-1.5	22-16	6	5.3	11.8	11	33.7	17	4.7	1.7	0.75
1010A204009	●RHT1-6(BS)	6	0.5-1.5	22-16	6	6.4	11.8	11	33.7	17	4.7	1.7	0.75
1010A204010	●RHT1-8(BS)	8	0.5-1.5	22-16	6	8.4	11.8	11	33.7	17	4.7	1.7	0.75
1010A204011	●RHT1-10(BS)	10	0.5-1.5	22-16	6	10.5	13.6	13.9	37.5	17	4.7	1.7	0.75
1010A204012	●RHT2-3.2(BS)	3	1.5-2.5	16-14	6	3.2	6.6	4.7	24.8	17	5.7	2.3	0.8
1010A204013	●RHT2-3.7S(BS)	3.5	1.5-2.5	16-14	6	3.7	6.6	4.7	24.8	17	5.7	2.3	0.8
1010A204014	●RHT2-3.7M(BS)	3.5	1.5-2.5	16-14	6	3.7	6.6	6.3	26.5	17	5.7	2.3	0.8
1010A204015	●RHT2-3.7L(BS)	3.5	1.5-2.5	16-14	6	3.7	8.5	7.4	28.8	17	5.7	2.3	0.8
1010A204016	●RHT2-4S(BS)	4	1.5-2.5	16-14	6	4.3	6.6	6.3	26.5	17	5.7	2.3	0.8
1010A204017	●RHT2-4L(BS)	4	1.5-2.5	16-14	6	4.3	8.5	7.8	28.8	17	5.7	2.3	0.8
1010A204018	●RHT2-5S(BS)	5	1.5-2.5	16-14	6	5.3	8.5	7.8	28.8	17	5.7	2.3	0.8
1010A204019	●RHT2-5L(BS)	5	1.5-2.5	16-14	6	5.3	9.6	7.3	29	17	5.7	2.3	0.8
1010A204020	●RHT2-6(BS)	6	1.5-2.5	16-14	6	6.4	12	11	33.9	17	5.7	2.3	0.8
1010A204021	●RHT2-8(BS)	8	1.5-2.5	16-14	6	8.4	12	11	33.9	17	5.7	2.3	0.8
1010A204022	●RHT2-10(BS)	10	1.5-2.5	16-14	6	10.5	13.6	13.6	37.5	17	5.7	2.3	0.8
1010A204023	●RHT5-3.7(BS)	3.5	4-6	12-10	7	3.7	7.2	6.1	29.7	20	6.7	3.4	1
1010A204024	●RHT5-4S(BS)	4	4-6	12-10	7	4.3	7.2	6.1	29.7	20	6.7	3.4	1
1010A204025	●RHT5-4L(BS)	4	4-6	12-10	7	4.3	9.5	8.3	33	20	6.7	3.4	1
1010A204026	●RHT5-5(BS)	5	4-6	12-10	7	5.3	9.5	8.3	33	20	6.7	3.4	1
1010A204027	●RHT5-6(BS)	6	4-6	12-10	7	6.4	12	10.5	36.5	20	6.7	3.4	1
1010A204028	●RHT5-8(BS)	8	4-6	12-10	7	8.4	15	13.5	41	20	6.7	3.4	1
1010A204029	●RHT5-10(BS)	10	4-6	12-10	7	10.5	15	13.5	41	20	6.7	3.4	1
1010A204030	●RHT5-12(BS)	12	4-6	12-10	7	13	19.2	16	45.6	20	6.7	3.4	1
