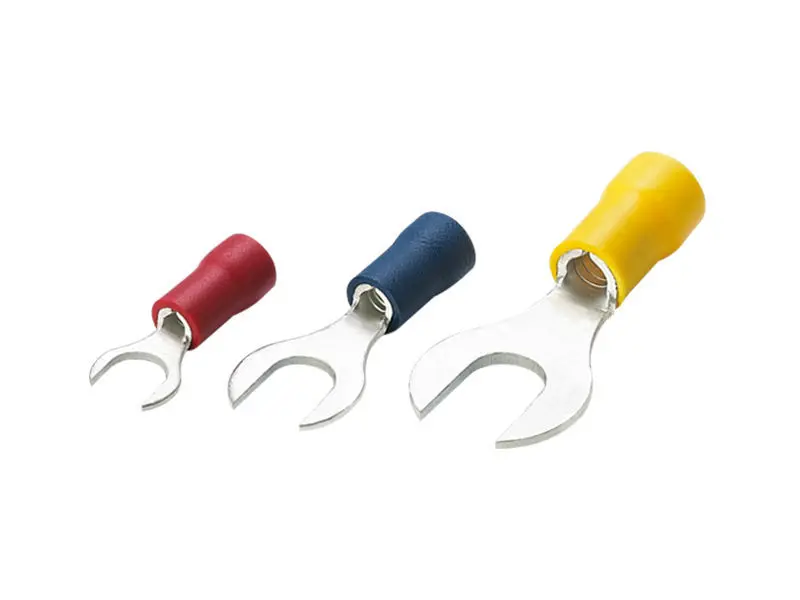

Vinyl-Insulated Fork Terminals

Materials:
● Conductor: Copper strip T2/C11000
● Insulation: PVC

Finished:
● Brazed seam
● Tin-Plated

Standard:
● ROHS3

Characteristics:
● Heat resistant: -10~75℃
● Enable universal used with studs/screws to fix on equipments
● Fixing structure with of an open-ended can be installed and removed without complete removal of the mounting screw
● Brazed seam on the crimp barrel; Creates a seamless barrel that eliminates the need for proper orientation of the barrel during crimping; permits 360° of rotation in the crimp jaws for faster and more reliable crimping
● According to UL486 requirements

Immediate Consultation

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length（mm)	Dimension(mm)

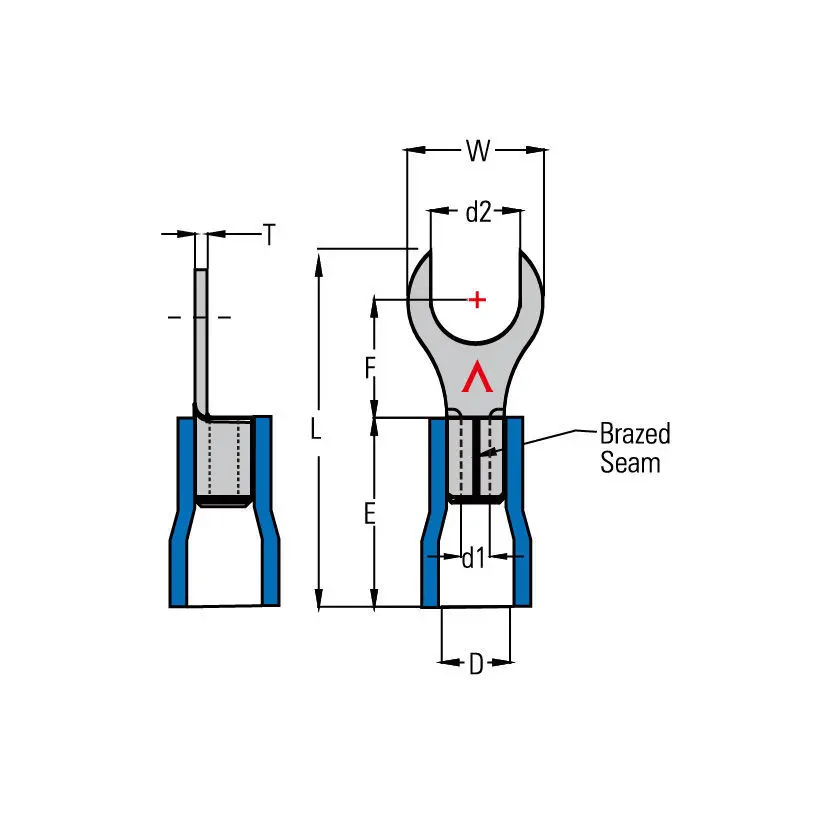

Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length（mm)	d2	W	F	L	E	D	d1	T
10111204001	●AV1-3.2(BS)	3	0.5-1.5	22-16	6.5-7.0	3.2	5.5	5	16.6	10	4.3	1.7	0.75
10111204002	●AV1-3.7(BS)	3.5	0.5-1.5	22-16	6.5-7.0	3.7	6.6	6.3	18.5	10	4.3	1.7	0.75
10111204003	●AV1-4(BS)	4	0.5-1.5	22-16	6.5-7.0	4.3	8	7	19.8	10	4.3	1.7	0.75
10111204004	●AV1-5(BS)	5	0.5-1.5	22-16	6.5-7.0	5.3	8	7	19.4	10	4.3	1.7	0.75
10111204005	●AV1-6(BS)	6	0.5-1.5	22-16	6.5-7.0	6.6	11.6	11	25.3	10	4.3	1.7	0.75
10111204006	●AV1-8(BS)	8	0.5-1.5	22-16	6.5-7.0	8.4	11.6	11	24.4	10	4.3	1.7	0.75
10111204007	●AV1-10(BS)	10	0.5-1.5	22-16	6.5-7.0	10.5	15	13.7	27.5	10	4.3	1.7	0.75
10111204008	●AV2-3.2(BS)	3	1.5-2.5	16-14	6.5-7.0	3.2	6.6	4.7	17	10	4.8	2.3	0.8
10111204009	●AV2-3.7(BS)	3.5	1.5-2.5	16-14	6.5-7.0	3.7	6.6	6.3	18.5	10	4.8	2.3	0.8
10111204010	●AV2-4(BS)	4	1.5-2.5	16-14	6.5-7.0	4.3	8.5	7.8	20.9	10	4.8	2.3	0.8
10111204011	●AV2-5(BS)	5	1.5-2.5	16-14	6.5-7.0	5.3	9.5	7.3	20.6	10	4.8	2.3	0.8
10111204012	●AV2-6(BS)	6	1.5-2.5	16-14	6.5-7.0	6.6	12	11	25.5	10	4.8	2.3	0.8
10111204013	●AV2-8(BS)	8	1.5-2.5	16-14	6.5-7.0	8.4	12	11	24.7	10	4.8	2.3	0.8
10111204014	●AV2-10(BS)	10	1.5-2.5	16-14	6.5-7.0	10.5	15	13.7	27.5	10	4.8	2.3	0.8
10111204015	●AV5-4(BS)	4	4-6	12-10	7.0-8.0	4.3	7.2	9.1	25.9	13	6.7	3.4	1
10111204016	●AV5-5(BS)	5	4-6	12-10	7.0-8.0	5.3	9.5	9.1	25.6	13	6.7	3.4	1
10111204017	●AV5-6(BS)	6	4-6	12-10	7.0-8.0	6.6	12	10.5	28.2	13	6.7	3.4	1
10111204018	●AV5-8(BS)	8	4-6	12-10	7.0-8.0	8.4	15	13.5	32.4	13	6.7	3.4	1
10111204019	●AV5-10(BS)	10	4-6	12-10	7.0-8.0	10.5	15	13.5	31.5	13	6.7	3.4	1
