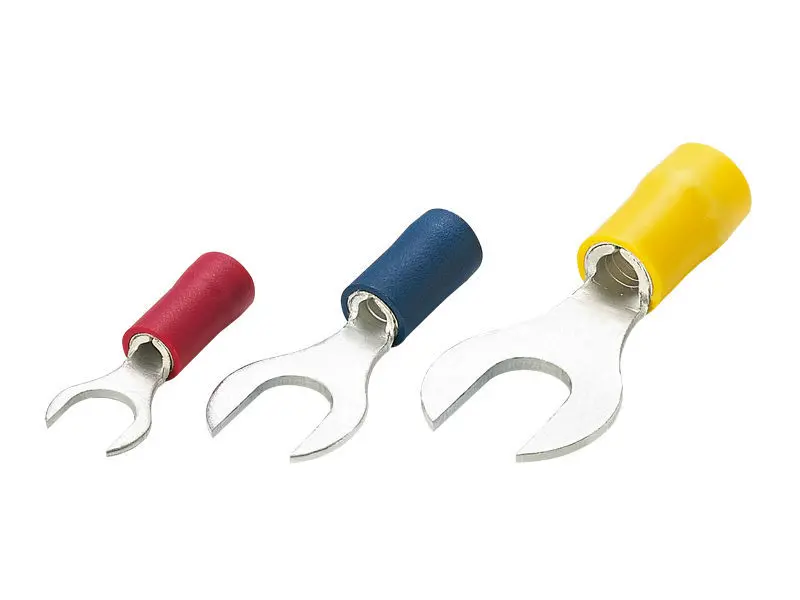

Vinyl-Insulated (Easy Entry) Double Crimp Fork Terminals

Materials:
● Conductor: Copper strip T2/C11000
● Copper sleeve: Copper tubular T2/C11000
● Insulation: PVC

Finished:
● Tin-Plated
● Standard:
● ROHS3

Characteristics:
● Heat resistant: -10~75℃
● Flared copper sleeve for easy cable insertion
● The Copper sleeve protection terminal and the cable are fully connected and reliable
● Enable universal used with studs/screws to fix on equipments
● Fixing structure with of an open-ended can be installed and removed without complete removal of the mounting screw
● According to UL486 requirements

Immediate Consultation

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length（mm)	Dimension(mm)

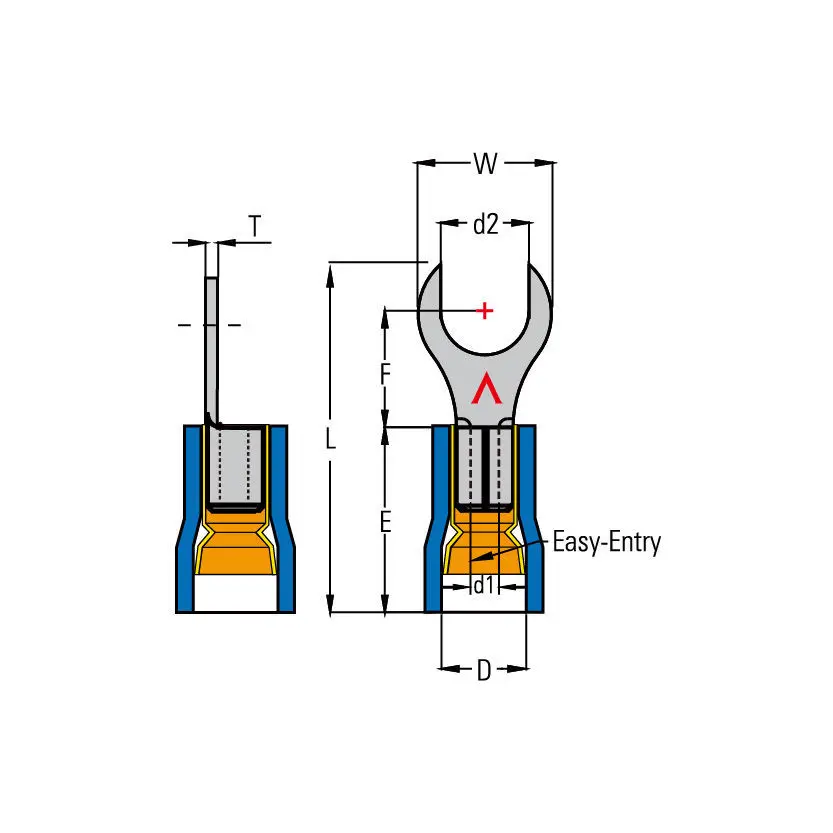

Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length（mm)	d2	W	F	L	E	D	d1	T
10111302001	●AD1-3.2	3	0.5-1.5	22-16	7.5-8.0	3.2	5.5	5	16.6	10	4.3	1.7	0.75
10111302002	●AD1-3.7	3.5	0.5-1.5	22-16	7.5-8.0	3.7	6.6	6.3	18.5	10	4.3	1.7	0.75
10111302003	●AD1-4	4	0.5-1.5	22-16	7.5-8.0	4.3	8	7	19.8	10	4.3	1.7	0.75
10111302004	●AD1-5	5	0.5-1.5	22-16	7.5-8.0	5.3	8	7	19.4	10	4.3	1.7	0.75
10111302005	●AD1-6	6	0.5-1.5	22-16	7.5-8.0	6.6	11.6	11	25.3	10	4.3	1.7	0.75
10111302006	●AD1-8	8	0.5-1.5	22-16	7.5-8.0	8.4	11.6	11	24.4	10	4.3	1.7	0.75
10111302007	●AD1-10	10	0.5-1.5	22-16	7.5-8.0	10.5	15	13.7	27.5	10	4.3	1.7	0.75
10111302008	●AD2-3.2	3	1.5-2.5	16-14	7.5-8.0	3.2	6.6	4.7	17	10	4.8	2.3	0.8
10111302009	●AD2-3.7	3.5	1.5-2.5	16-14	7.5-8.0	3.7	6.6	6.3	18.5	10	4.8	2.3	0.8
10111302010	●AD2-4	4	1.5-2.5	16-14	7.5-8.0	4.3	8.5	7.8	20.9	10	4.8	2.3	0.8
10111302011	●AD2-5	5	1.5-2.5	16-14	7.5-8.0	5.3	9.5	7.3	20.6	10	4.8	2.3	0.8
10111302012	●AD2-6	6	1.5-2.5	16-14	7.5-8.0	6.6	12	11	25.5	10	4.8	2.3	0.8
10111302013	●AD2-8	8	1.5-2.5	16-14	7.5-8.0	8.4	12	11	24.7	10	4.8	2.3	0.8
10111302014	●AD2-10	10	1.5-2.5	16-14	7.5-8.0	10.5	15	13.7	27.5	10	4.8	2.3	0.8
10111302015	●AD5-4	4	4-6	12-10	8.5-9.0	4.3	7.2	9.1	25.9	13	6.7	3.4	1
10111302016	●AD5-5	5	4-6	12-10	8.5-9.0	5.3	9.5	9.1	25.6	13	6.7	3.4	1
10111302017	●AD5-6	6	4-6	12-10	8.5-9.0	6.6	12	10.5	28.2	13	6.7	3.4	1
10111302018	●AD5-8	8	4-6	12-10	8.5-9.0	8.4	15	13.5	32.4	13	6.7	3.4	1
10111302019	●AD5-10	10	4-6	12-10	8.5-9.0	10.5	15	13.5	31.5	13	6.7	3.4	1
