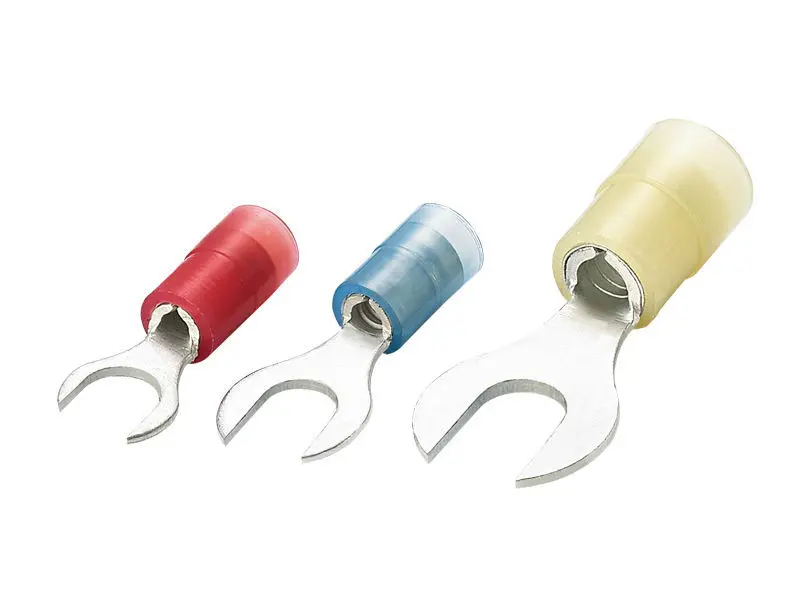

Nylon-Insulated (Easy Entry) Double Crimp Fork Terminals

Materials:
● Conductor: Copper strip T2/C11000
● Copper sleeve: Copper tubular T2/C11000
● Insulation: Nylon

Finished:
● Tin-Plated

Standard:
● ROHS3

Characteristics:
● Heat resistant: -40~105℃
● Flared copper sleeve for easy cable insertion
● The Copper sleeve protection terminal and the cable are fully connected and reliable
● Enable universal used with studs/screws to fix on equipments
● Fixing structure with of an open-ended can be installed and removed without complete removal of the mounting screw
● According to UL486 requirements

Immediate Consultation

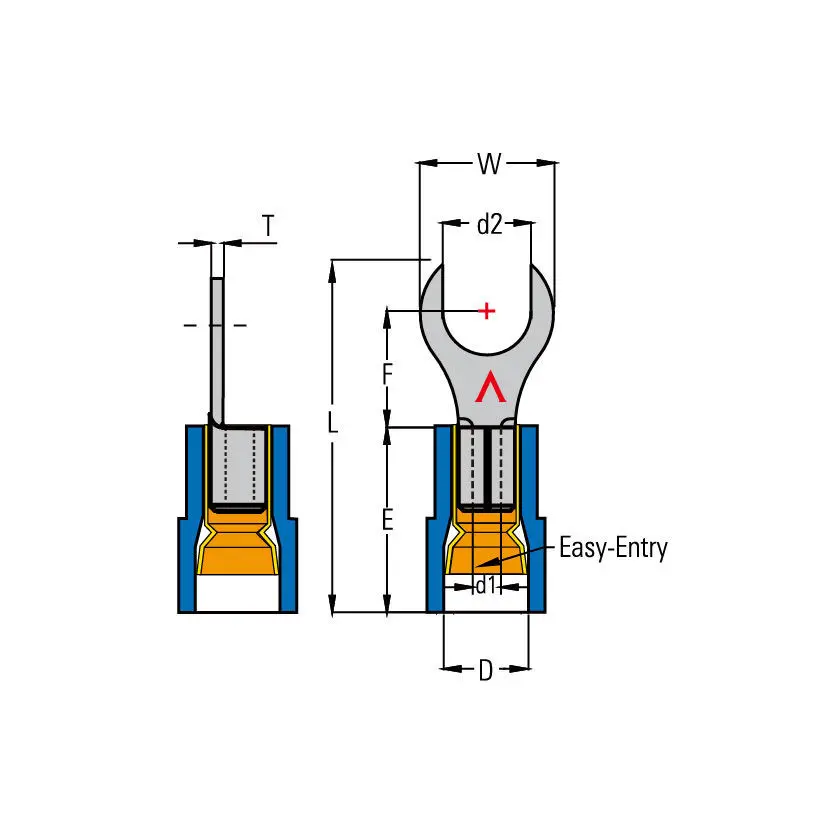

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length(mm)	Dimension(mm)
Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length(mm)	d2	W	F	L	E	D	d1	T
10111310001	●ANYD1-3.2	3	0.5-1.5	22-16	7.5-8.0	3.2	5.5	5	17.3	10.7	4.4	1.7	0.75
10111310002	●ANYD1-3.7	3.5	0.5-1.5	22-16	7.5-8.0	3.7	6.6	6.3	19.2	10.7	4.4	1.7	0.75
10111310003	●ANYD1-4	4	0.5-1.5	22-16	7.5-8.0	4.3	8	7	20.5	10.7	4.4	1.7	0.75
10111310004	●ANYD1-5	5	0.5-1.5	22-16	7.5-8.0	5.3	8	7	20.1	10.7	4.4	1.7	0.75
10111310005	●ANYD1-6	6	0.5-1.5	22-16	7.5-8.0	6.6	11.6	11	26	10.7	4.4	1.7	0.75
10111310006	●ANYD1-8	8	0.5-1.5	22-16	7.5-8.0	8.4	11.6	11	25.1	10.7	4.4	1.7	0.75
10111310007	●ANYD1-10	10	0.5-1.5	22-16	7.5-8.0	10.5	15	13.7	28.2	10.7	4.4	1.7	0.75
10111310008	●ANYD2-3.2	3	1.5-2.5	16-14	7.5-8.0	3.2	6.6	4.7	17.7	10.7	5	2.3	0.8
10111310009	●ANYD2-3.7	3.5	1.5-2.5	16-14	7.5-8.0	3.7	6.6	6.3	19.2	10.7	5	2.3	0.8
10111310010	●ANYD2-4	4	1.5-2.5	16-14	7.5-8.0	4.3	8.5	7.8	21.6	10.7	5	2.3	0.8
10111310011	●ANYD2-5	5	1.5-2.5	16-14	7.5-8.0	5.3	9.5	7.3	21.3	10.7	5	2.3	0.8
10111310012	●ANYD2-6	6	1.5-2.5	16-14	7.5-8.0	6.6	12	11	26.2	10.7	5	2.3	0.8
10111310013	●ANYD2-8	8	1.5-2.5	16-14	7.5-8.0	8.4	12	11	25.4	10.7	5	2.3	0.8
10111310014	●ANYD2-10	10	1.5-2.5	16-14	7.5-8.0	10.5	15	13.7	28.2	10.7	5	2.3	0.8
10111310015	●ANYD5-4	4	4-6	12-10	8.5-9.0	4.3	7.2	9.1	25.9	12.7	7	3.4	1
10111310016	●ANYD5-5	5	4-6	12-10	8.5-9.0	5.3	9.5	9.1	25.6	12.7	7	3.4	1
10111310017	●ANYD5-6	6	4-6	12-10	8.5-9.0	6.6	12	10.5	28.2	12.7	7	3.4	1
10111310018	●ANYD5-8	8	4-6	12-10	8.5-9.0	8.4	15	13.5	32.4	12.7	7	3.4	1
10111310019	●ANYD5-10	10	4-6	12-10	8.5-9.0	10.5	15	13.5	31.5	12.7	7	3.4	1
