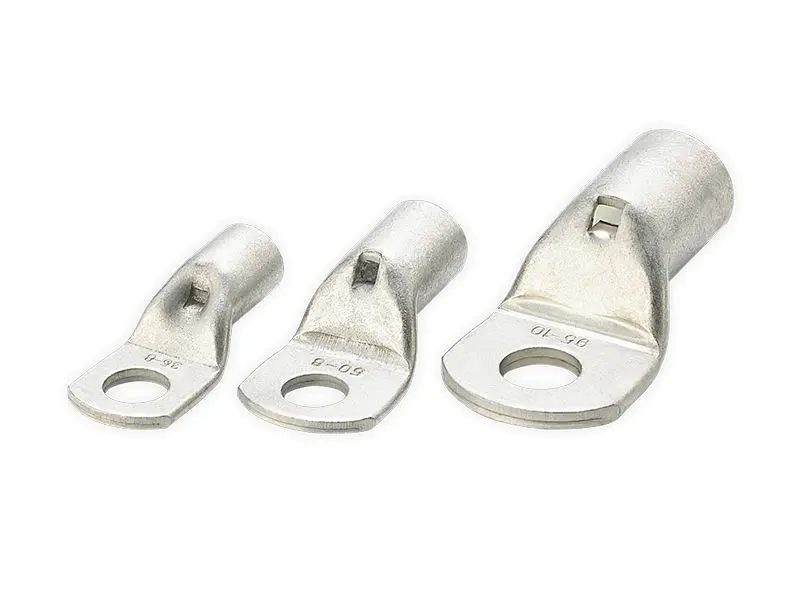

Non-Insulated TK Series Copper Tubular Lugs(Spy Hole)

Materials:
● Copper tubular T2/C11000

Finished:
● Tin-Plated

Standard:
● ROHS3

Characteristics:
● AWG wire size and stud size identification on the lug
● Enables universal use with one studs /screws to fix on equipments
● Design the fixed close-end structure with stub to ensure connection reliability
● Full anneal(HV60) to ensure the compression effect
● Inspection sight hole to inspect right place of cable insertion
● According to UL486 requirements

Immediate Consultation

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length（mm)	Dimension(mm)

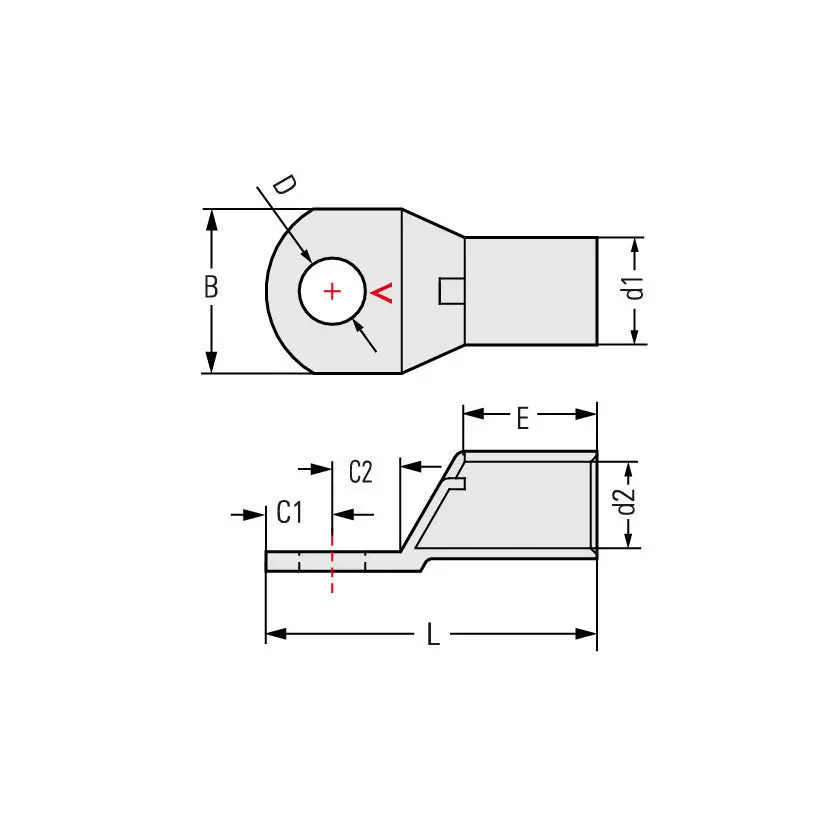

Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length（mm)	D	B	C1	C2	E	L	d2	d1
10117114001	TK6-5	5	4-6	12-10	10	5.3	10	6	6.5	10	25.7	4	5.5
10117114002	TK6-6	6	4-6	12-10	10	6.5	10	6	6.5	10	25.7	4	5.5
10117114003	TK10-5	5	10	8	11	5.3	12	6	6.5	11	27	4.8	6.9
10117114004	TK10-6	6	10	8	11	6.5	12	6	6.5	11	27	4.8	6.9
10117114005	TK10-8	8	10	8	11	8.5	13.5	7.5	8	11	30.5	4.8	6.9
10117114006	TK10-10	10	10	8	11	10.5	15	9	11	11	30.5	4.8	6.9
10117114007	TK16-5	5	16	6	11	5.3	12	6	6.5	11	28	5.8	7.8
10117114008	TK16-6	6	16	6	11	6.5	12	6	7	11	28.6	5.8	7.8
10117114009	TK16-8	8	16	6	11	8.5	13.5	7.5	7.5	11	30.6	5.8	7.8
10117114010	TK16-10	10	16	6	11	10.5	16	9	11	11	32	5.8	7.8
10117114011	TK25-6	6	25	4	13.5	6.5	14	6	8.5	13.5	33.7	7.2	9.5
10117114012	TK25-8	8	25	4	13.5	8.5	14	7.5	7.5	13.5	34.2	7.2	9.5
10117114013	TK25-10	10	25	4	13.5	10.5	16	9	11	13.5	37	7.2	9.5
10117114014	TK35-6	6	35	2	16	6.5	16.5	6	8.5	16	37.2	8.3	11
10117114015	TK35-8	8	35	2	16	8.5	16.5	7.5	8.5	16	38.7	8.3	11
10117114016	TK35-10	10	35	2	16	10.5	16.5	10.5	11	15	43.2	8.3	11
10117114017	TK35-12	12	35	2	16	13	18	12	12	13	43.7	8.3	11
10117114018	TK50-8	8	50	1/0	16.5	8.5	18	7.5	9.5	20	40	9.7	12.5
10117114019	TK50-10	10	50	1/0	16.5	10.5	18	10.5	11	20	48.8	9.7	12.5
10117114020	TK50-12	12	50	1/0	16.5	12.8	18	12	13	17.5	48.8	9.7	12.5
10117114021	TK50-16	6	50	1/0	16.5	17	25	15	16	20	58.4	9.7	12.5
10117114022	TK70-8	8	70	2/0	55	8.5	22	8	11	19	45.8	11.7	15
10117114023	TK70-10	10	70	2/0	55	10.5	22	10.5	11.7	19	50.6	11.7	15
10117114024	TK70-12	12	70	2/0	55	13	22	12	12.5	19	51.8	11.7	15
10117114025	TK70-16	16	70	2/0	55	17	24	15	18	19	61.8	11.7	15
10117114026	TK95-8	8	95	3/0	22	8.5	25	8	13	22	53	13.7	17
10117114027	TK95-10	10	95	3/0	22	10.5	25	10.5	13	22	55.5	13.7	17
10117114028	TK95-12	12	95	3/0	22	13	25	12	12.5	22	55.5	13.7	17
10117114029	TK95-16	16	95	3/0	22	17	25	15	17	21	64	13.7	17
10117114030	TK120-8	8	120	4/0	27	8.5	29	15	17	27	70.1	15.8	20
10117114031	TK120-10	10	120	4/0	27	10.5	29	15	17	27	70.1	15.8	20
10117114032	TK120-12	12	120	4/0	27	13	29	15	17	27	70.1	15.8	20
10117114033	TK120-16	16	120	4/0	27	17	29	17	19	27	71	15.8	20
10117114034	TK150-10	10	150	250/300	32.5	10.5	30.6	15	17	32	76.3	16.6	21
10117114035	TK150-12	12	150	250/300	32.5	13	30.6	15	17	32	76.3	16.6	21
10117114036	TK150-16	16	150	250/300	32.5	17	30.6	15	17	32	76.3	16.6	21
10117114037	TK150-20	20	150	250/300	32.5	21	30.6	17	19	32	80	16.6	21
10117114038	TK185-12	12	185	300-350	34.5	13	34	15	17	34	80.5	18.5	23.5
10117114039	TK185-16	16	185	300-350	34.5	17	34	15	17	34	80.5	18.5	23.5
10117114040	TK185-20	20	185	300-350	34.5	21	34	17	19	34	84	18.5	23.5
10117114041	TK240-12	12	240	400/450	37.5	13	38.5	17.5	18	37	88.5	21.4	26.4
10117114042	TK240-16	16	240	400/450	37.5	17	38.5	17.5	18	37	88.5	21.4	26.4
10117114043	TK240-20	20	240	400/450	37.5	21	38.5	17.5	19	37	90.5	21.4	26.4
10117114044	TK300-12	12	300	500/600	40.5	13	42	17.5	19	40	95	23.6	28.6
10117114046	TK300-16	16	300	500/600	40.5	17	42	17.5	19	40	95	23.6	28.6
10117114047	TK300-20	20	300	500/600	40.5	21	42	17.5	19	40	95	23.6	28.6
10117114048	TK400-12	12	400	600/750	44.5	13	48	19	22	42	101	27	32.8
10117114049	TK400-16	16	400	600/750	42.5	17	48	19	22	42	102	27	32.8
10117114050	TK400-20	20	400	600/750	42.5	21	48	19	22	42	102	27	32.8
10117114051	TK500-12	12	500	800/1000	47	13	55	19	22	46.5	115	30	38.4
10117114052	TK500-16	16	500	800/1000	47	17	55	19	22	46.5	115	30	38.4
10117114053	TK500-20	20	500	800/1000	47	21	55	19	22	46.5	115	30	38.4
10117114054	TK630-16	16	630	1000/1250	50.5	17	64	19	22	50	131.1	34.5	44.7
10117114055	TK630-20	20	630	1000/1250	50.5	21	64	19	22	50	131.1	34.5	44.7
