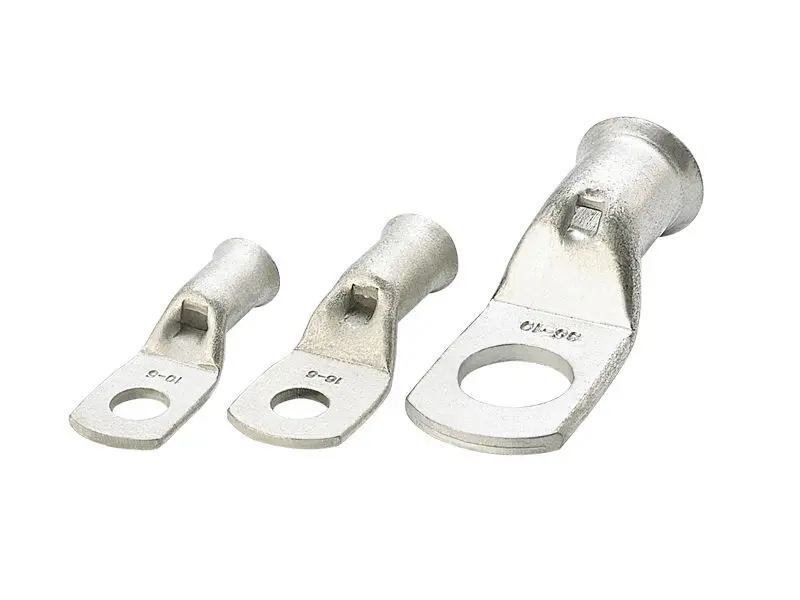

Non-Insulated TKL Series Copper Tubular Lugs(Spy Hole)

Materials:
● Copper tubular T2/C11000

Finished:
● Tin-Plated

Standard:
● ROHS3

Characteristics:
● AWG wire size and stud size identification on the lug
● Enables universal use with one studs /screws to fix on equipments
● Design the fixed close-end structure with stub to ensure connection reliability
● Full anneal(HV60) to ensure the compression effect
● Inspection sight hole to inspect right place of cable insertion
● The flared barrel entry accommodates easy insertion of stranded wire
● According to UL486 requirements

Immediate Consultation

Part No.	Type	Stud (Metric)	Application for Cable Size		Stripped Length（mm)	Dimension(mm)
Part No.	Type	Stud (Metric)	mm²	A.W.G.	Stripped Length（mm)	B	C1	C2	E	L	D	d2	d1
10117216001	TKL6-5	5	4-6	12-10	10	10	6	6.5	10	25.7	5.3	4	5.5
10117216002	TKL6-6	6	4-6	12-10	10	10	6	6.5	10	25.7	6.5	4	5.5
10117216003	TKL10-5	5	10	8	11	12	6	6.5	11	27	5.3	4.8	6.9
10117216004	TKL10-6	6	10	8	11	12	6	6.5	11	27	6.5	4.8	6.9
10117216005	TKL10-8	8	10	8	11	13.5	7.5	8	11	30.5	8.5	4.8	6.9
10117216006	TKL10-10	10	10	8	11	15	9	11	11	30.5	10.5	4.8	6.9
10117216007	TKL16-5	5	16	6	11	12	6	6.5	11	28	5.3	5.8	7.8
10117216008	TKL16-6	6	16	6	11	12	6	7	11	28.6	6.5	5.8	7.8
10117216009	TKL16-8	8	16	6	11	13.5	7.5	7.5	11	30.6	8.5	5.8	7.8
10117216010	TKL16-10	8	16	6	11	13.5	7.5	7.5	11	30.6	8.5	5.8	7.8
10117216011	TKL25-6	6	25	4	13.5	14	6	8.5	13.5	33.7	6.5	7.2	9.5
10117216012	TKL25-8	8	25	4	13.5	14	7.5	7.5	13.5	34.2	8.5	7.2	9.5
10117216013	TKL25-10	8	25	4	13.5	16	9	11	13.5	37	10.5	7.2	9.5
10117216014	TKL35-6	6	35	2	16	16.5	6	7	16	37.2	6.5	8.3	11
10117216015	TKL35-8	8	35	2	16	16.5	7.5	9	16	38.7	8.5	8.3	11
10117216016	TKL35-10	10	35	2	16	16.5	10.5	11	15	43.2	10.5	8.3	11
10117216017	TKL35-12	12	35	2	16	18	12	13	13	43.7	13	8.3	11
10117216018	TKL50-8	8	50	1/0	20	18	7.5	9.5	20	40	8.5	9.7	12.5
10117216019	TKL50-10	10	50	1/0	20	18	10.5	11	20	48.8	10.5	9.7	12.5
10117216020	TKL50-12	12	50	1/0	20	18	12	13	17.5	48.8	12.8	9.7	12.5
10117216021	TKL50-16	6	50	1/0	20	25	15	16	20	58.4	17	9.7	12.5
10117216022	TKL70-8	8	70	2/0	20	22	8	11	19	45.8	8.5	11.7	15
10117216023	TKL70-10	10	70	2/0	20	22	10.5	11.7	19	50.6	10.5	11.7	15
10117216024	TKL70-12	12	70	2/0	20	22	12	12.5	19	51.8	13	11.7	15
10117216025	TKL70-16	16	70	2/0	20	24	15	18	19	61.8	17	11.7	15
10117216026	TKL95-8	8	95	3/0	22	25	8	13	22	53	8.5	13.7	17
10117216027	TKL95-10	10	95	3/0	22	25	10.5	13	22	55.5	10.5	13.7	17
10117216028	TKL95-12	12	95	3/0	22	25	12	12.5	22	55.5	13	13.7	17
10117216029	TKL95-16	16	95	3/0	22	25	15	17	21	64	17	13.7	17
10117216030	TKL 120-8	8	120	4/0	27	29	15	17	27	53	8.5	13.7	17
10117216031	TKL120-10	10	120	4/0	27	29	15	17	27	55.5	10.5	13.7	17
10117216032	TKL120-12	12	120	4/0	27	29	15	17	27	55.5	13	13.7	17
10117216033	TKL120-16	16	120	4/0	27	29	17	19	27	64	17	13.7	17
10117216034	TKL150-10	10	150	250/300	32.5	30.6	15	17	32	70.1	8.5	15.8	20
10117216035	TKL150-12	12	150	250/300	32.5	30.6	15	17	32	70.1	10.5	15.8	20
10117216036	TKL150-16	16	150	250/300	32.5	30.6	15	17	32	70.1	13	15.8	20
10117216037	TKL150-20	20	150	250/300	32.5	30.6	17	19	32	74	17	15.8	20
10117216038	TKL185-12	12	185	300-350	34.5	34	15	17	34	80.5	13	18.5	23.5
10117216039	TKL185-16	16	185	300-350	34.5	34	15	17	34	80.5	17	18.5	23.5
10117216040	TKL185-20	20	185	300-350	34.5	34	17	19	34	84	21	18.5	23.5
10117216041	TKL240-12	12	240	400/450	37.5	38.5	17.5	18	37	88.5	13	21.4	26.4
10117216042	TKL240-16	16	240	400/450	37.5	38.5	17.5	18	37	88.5	17	21.4	26.4
10117216043	TKL240-20	20	240	400/450	37.5	38.5	17.5	19	37	90.5	21	21.4	26.4
10117216044	TKL300-12	12	300	500/600	40.5	42	17.5	19	40	95	13	23.6	28.6
10117216045	TKL 300-16	16	300	500/600	40.5	42	17.5	19	40	95	17	23.6	28.6
10117216046	TKL300-20	20	300	500/600	40.5	42	17.5	19	40	95	21	23.6	28.6
10117216047	TKL400-12	12	400	600/750	42.5	48	19	22	42	101	13	27	32.8
10117216048	TKL400-16	16	400	600/750	42.5	48	19	22	42	102	17	27	32.8
10117216049	TKL400-20	20	400	600/750	46.5	45	19	22	42	102	21	27	32.8
10117216050	TKL500-12	12	500	800/1000	46.5	55	19	22	46.5	115	13	30	38.4
10117216051	TKL500-16	16	500	800/1000	46.5	55	19	22	46.5	115	17	30	38.4
10117216052	TKL500-20	20	500	800/1000	55.5	55	19	22	46.5	115	21	30	38.4
10117216053	TKL630-16	16	630	1000/1250	55.5	64	19	22	50	131.1	17	34.5	44.7
10117216054	TKL630-20	20	630	1000/1250	55.5	64	19	22	50	131.1	21	34.5	44.7
