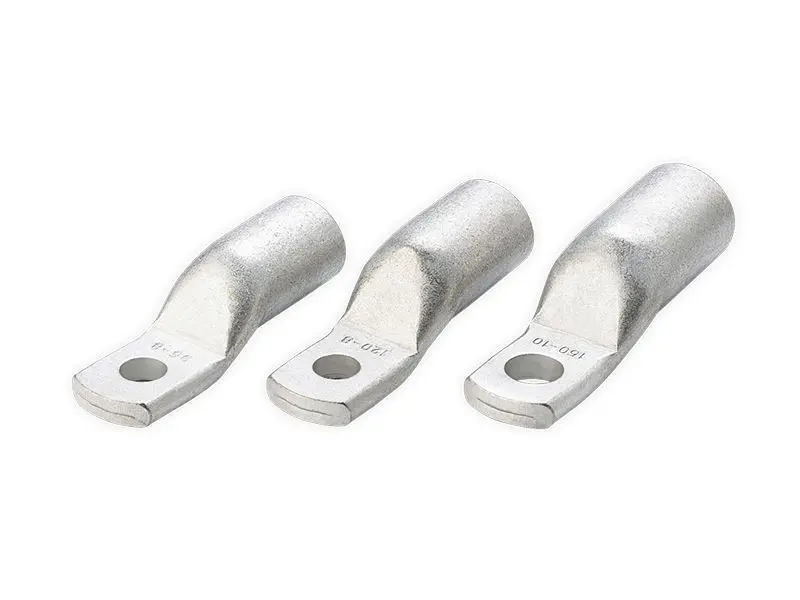

Non-Insulated Stenocephaly Copper Tubular Lugs
Materials:
● Copper tubular T2/C11000
Finished:
● Tin-Plated
Standard:
● ROHS3
Characteristics:
● AWG wire size and stud size identification on the lug
● Enables universal use with one studs /screws to fix on equipments
● Design the fixed close-end structure with stub to ensure connection reliability
● Full anneal(HV60) to ensure the compression effect
● Narrow tongue used in smaller space of equipment to fix
● According to UL486 requirement
| Part No. | Type | Stud (Metric) | Application for Cable Size | Stripped Length（mm) | Dimension(mm) | ||||||||
| mm² | A.W.G. | a | b | C1 | C2 | d1 | d2 | d3 | L | ||||
| 10117KB1001 | SG35-6 | 6 | 35 | 2 | 18 | 17 | 15 | 7.5 | 7.5 | 8.5 | 6.5 | 12 | 39.5 |
| 10117KB1002 | SG50-6 | 6 | 50 | 1/0 | 20 | 19 | 15 | 10 | 10 | 10 | 6.5 | 14 | 47 |
| 10117KB1003 | SG70-6 | 6 | 70 | 2/0 | 22 | 21 | 17 | 10 | 10 | 12 | 6.5 | 16.5 | 53 |
| 10117KB1004 | SG70-8 | 8 | 70 | 2/0 | 22 | 21 | 17 | 10 | 10 | 12 | 8.5 | 16.5 | 53 |
| 10117KB1005 | SG95-8 | 8 | 95 | 3/0 | 26 | 25 | 19 | 11.5 | 12 | 13.5 | 8.5 | 18 | 59.5 |
| 10117KB1006 | SG95-10 | 10 | 95 | 3/0 | 26 | 25 | 19 | 11.5 | 12 | 13.5 | 10.5 | 18 | 59.5 |
| 10117KB1007 | SG120-8 | 8 | 120 | 4/0 | 27 | 26 | 19 | 11.5 | 14 | 15 | 8.5 | 19.5 | 62.5 |
| 10117KB1008 | SG120-10 | 10 | 120 | 4/0 | 27 | 26 | 19 | 11.5 | 14 | 15 | 10.5 | 19.5 | 62.5 |
| 10117KB1009 | SG150-8 | 8 | 150 | 250/300 | 31 | 30 | 19 | 11.5 | 14 | 16.5 | 8.5 | 21 | 67.5 |
| 10117KB1010 | SG150-10 | 10 | 150 | 250/300 | 31 | 30 | 19 | 11.5 | 14 | 16.5 | 10.5 | 21 | 67.5 |
| 10117KB1011 | SG185-10 | 10 | 185 | 300/350 | 31 | 30 | 24.5 | 11.5 | 18 | 19 | 10.5 | 24 | 76.5 |
| 10117KB1012 | SG240-10 | 10 | 240 | 400/450 | 36 | 35 | 31 | 11.5 | 19 | 21 | 10.5 | 26 | 83.5 |
