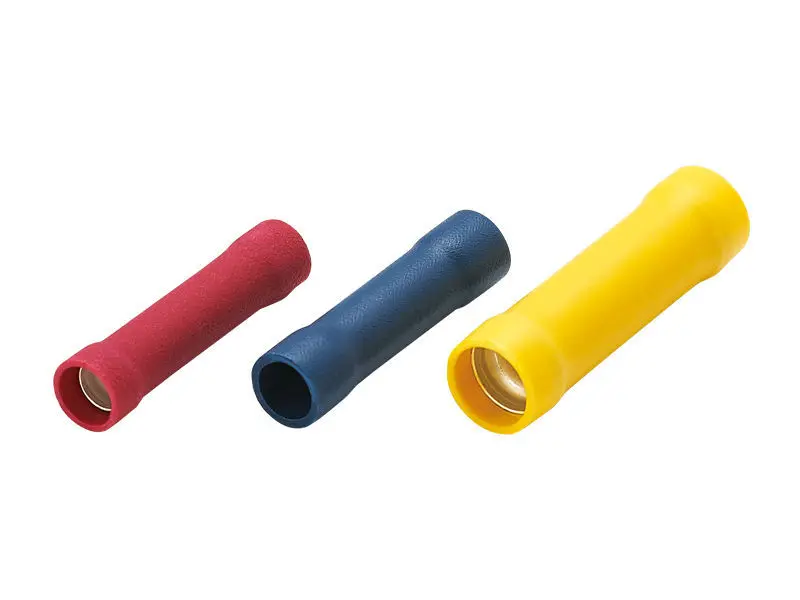

Vinyl-Insulated Double Crimp Butt Splice Connectors(Easy Entry)
Materials:
● Conductor: Copper strip T2/C11000
● Copper sleeve: Copper tubular T2/C11000
● Insulation: PVC
Finished:
● Tin-Plated
Standard:
● ROHS3
Characteristics:
● Heat resistant: -10~75℃
● Flared copper sleeve for easy cable insertion
● The copper sleeve protection terminal and the cable are fully connected and reliable
● The conductor is made of the stamping barrel type
● One or more conductors of varying gauges can be laid on top of one another and crimped in a short space

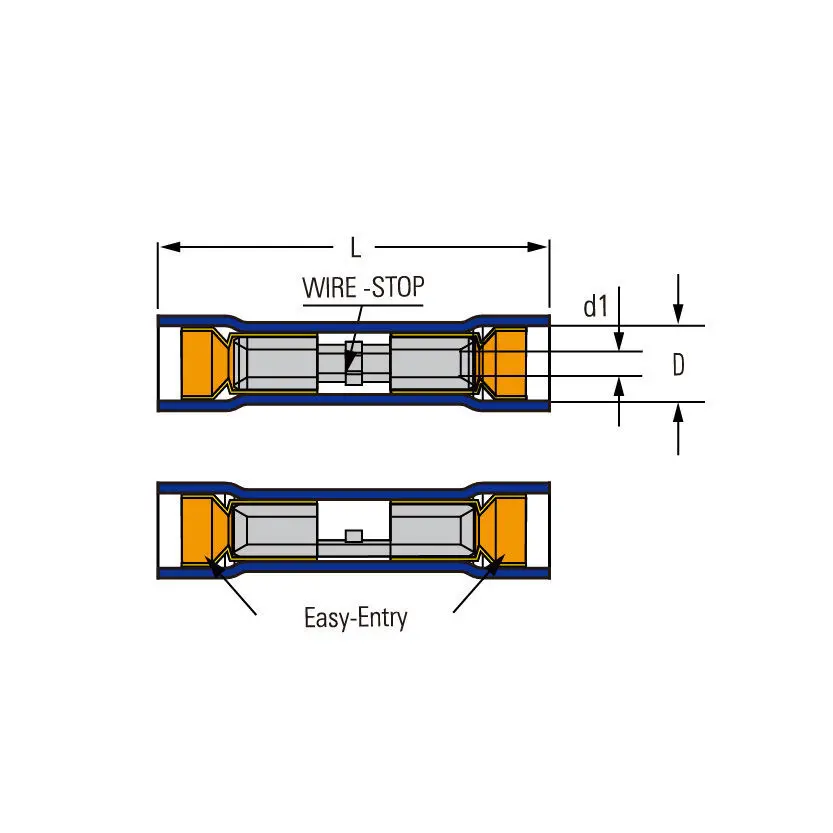

● WIRE-STOP structure is conducive to insertion wire in right place to ensure the effect of compression
● According to UL486 requirements
| Part No. | Type | Application for Cable Size | Stripped Length（mm) | Dimension(mm) | |||
| mm² | A.W.G. | L | D | d1 | |||
| 10105411001 | ● BD(E)1 | 0.5-1.5 | 22-16 | 8.5-9.0 | 24.5 | 4.7 | 1.7 |
| 10105411002 | ● BD(E)2 | 1.5-2.5 | 16-14 | 8.5-9.0 | 24.5 | 5.1 | 2.3 |
| 10105411003 | ● BD(E)5 | 4-6 | 12-10 | 8.5-9.0 | 29.5 | 6.6 | 3.4 |
