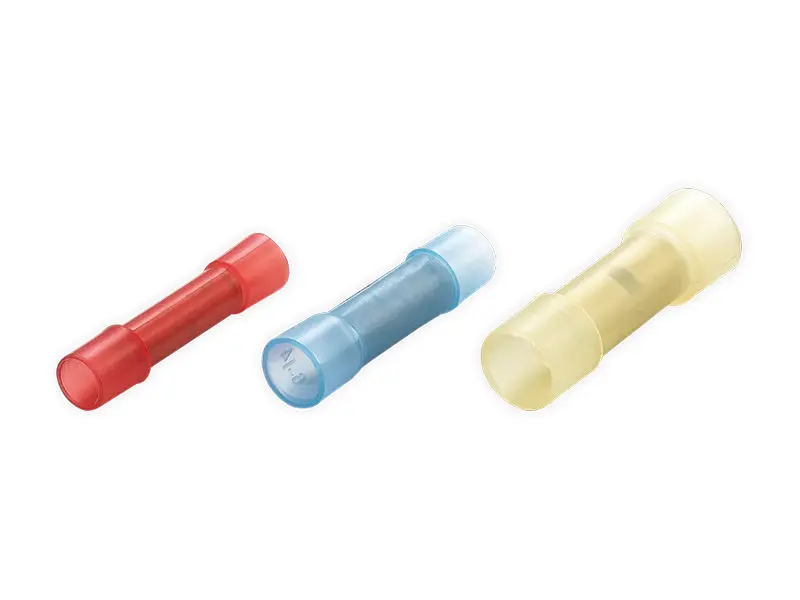

Nylon-Insulated Butt Splice Connectors
Materials:
● Conductor: Copper strip T2/C11000
● Insulation: Nylon
Finished:
● Tin-Plated
Standard:
● ROHS3
Characteristics:
● Heat resistant: -40~105℃
● The conductor is made of the stamping barrel type
● One or more conductors of varying gauges can be laid on top of one another and crimped in a short space
● WIRE-STOP structure is conducive to insertion wire in right place to ensure the effect of compression
● According to UL486 requirements

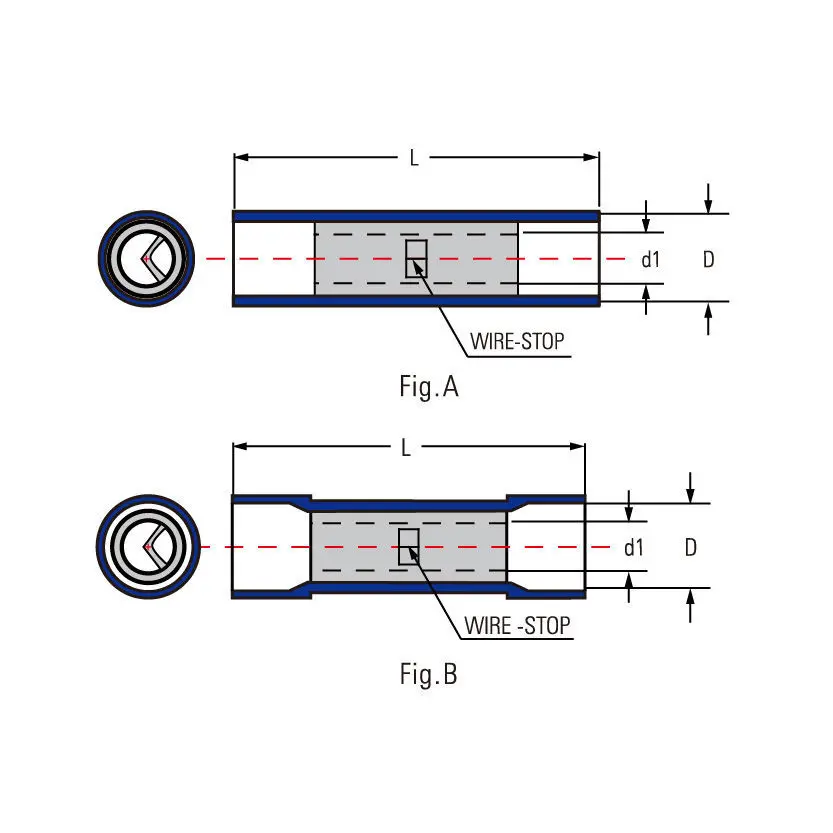

| Part No. | Type | Application for Cable Size | Stripped Length（mm) | Dimension(mm) | Fig. | |||
| mm² | A.W.G. | L | D | d1 | ||||
| 10105211S01 | ●BNY1 | 0.5-1,5 | 22-16 | 7.3-7.7 | 27 | 3.3 | 1.7 | Fig.A |
| 10105211S02 | ●BNY2 | 1.5-2.5 | 16-14 | 7.3-7.7 | 27 | 3.9 | 2.3 | Fig.A |
| 10105211S05 | ●BNY5 | 4-6 | 12-10 | 7.3-7.7 | 27 | 5.5 | 3.4 | Fig.A |
| 10105241S01 | ●BNYF1 | 0.5-1.5 | 22-16 | 7.3-7.7 | 26.2 | 4.1 | 1.7 | Fig.B |
| 10105241S02 | ●BNYF2 | 1.5-2.5 | 16-14 | 7.3-7.7 | 26.2 | 4.7 | 2.3 | Fig.B |
| 10105241S03 | ●BNYF5 | 4-6 | 12-10 | 7.3-7.7 | 28.2 | 6.4 | 3.4 | Fig.B |
